How much power does the XA Power amplifier provide?
The XA Power amplifier delivers 2 x 150 watts at 8 ohms and can deliver 1 x 300 watts at 8 ohms in mono-bridge mode.

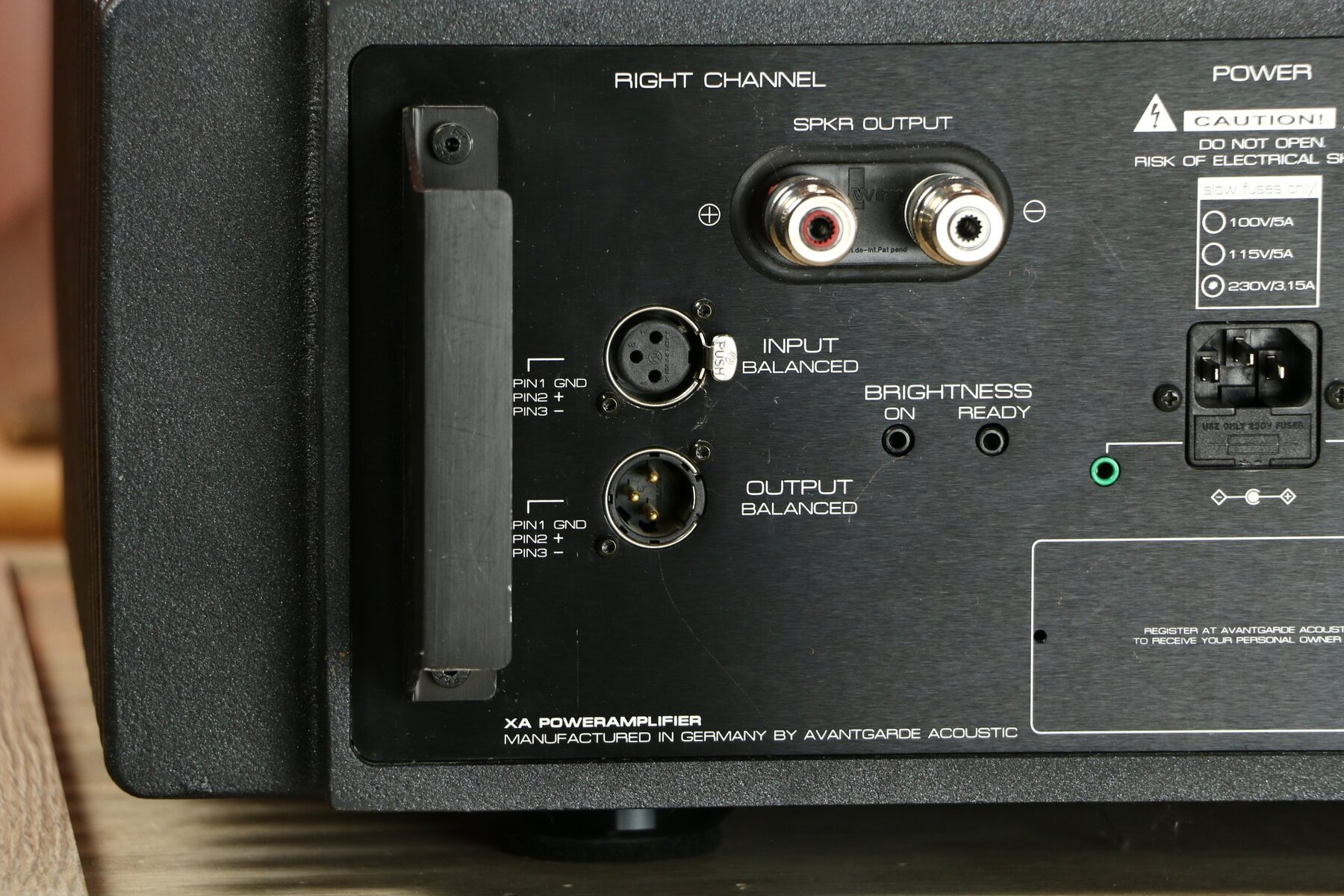

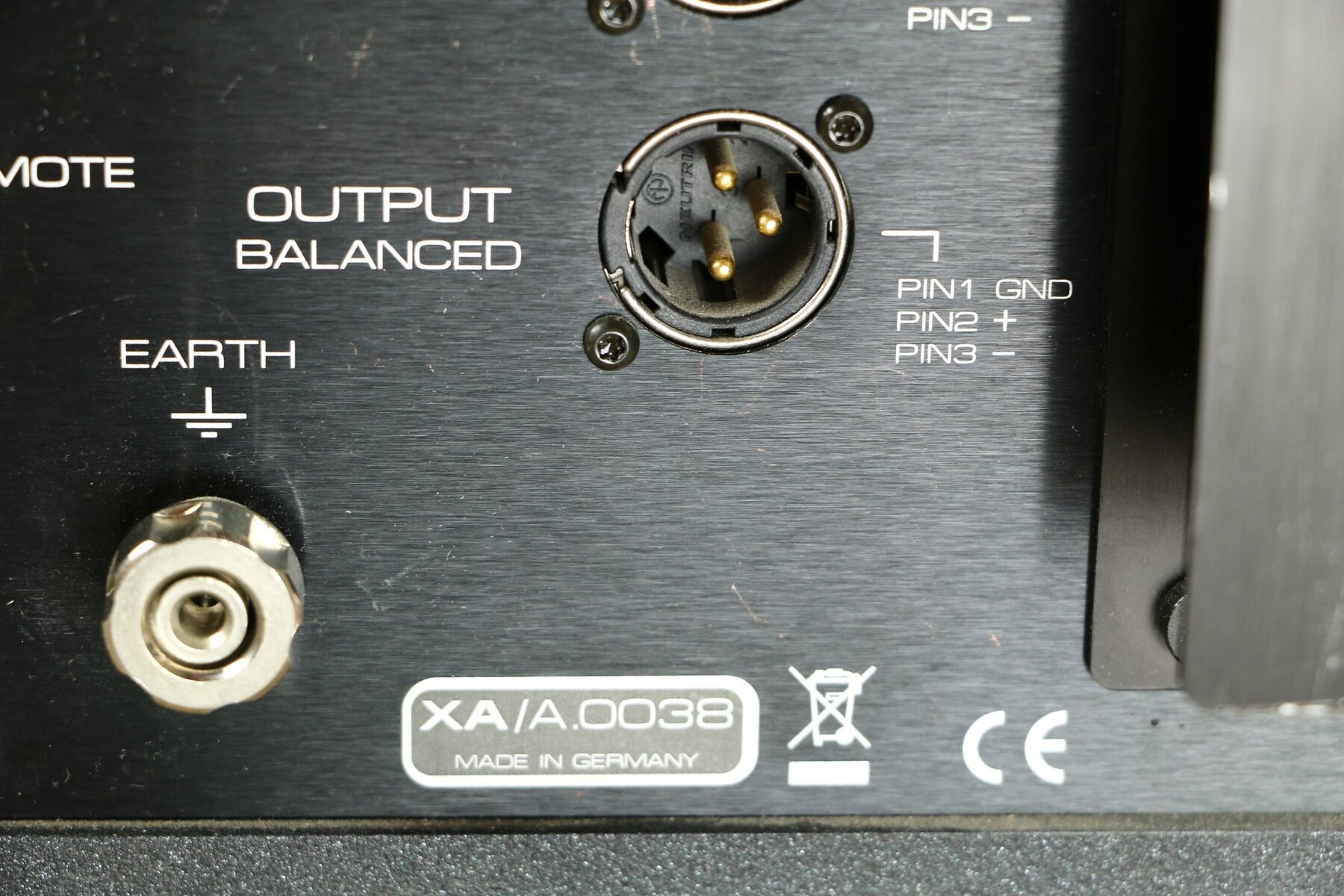

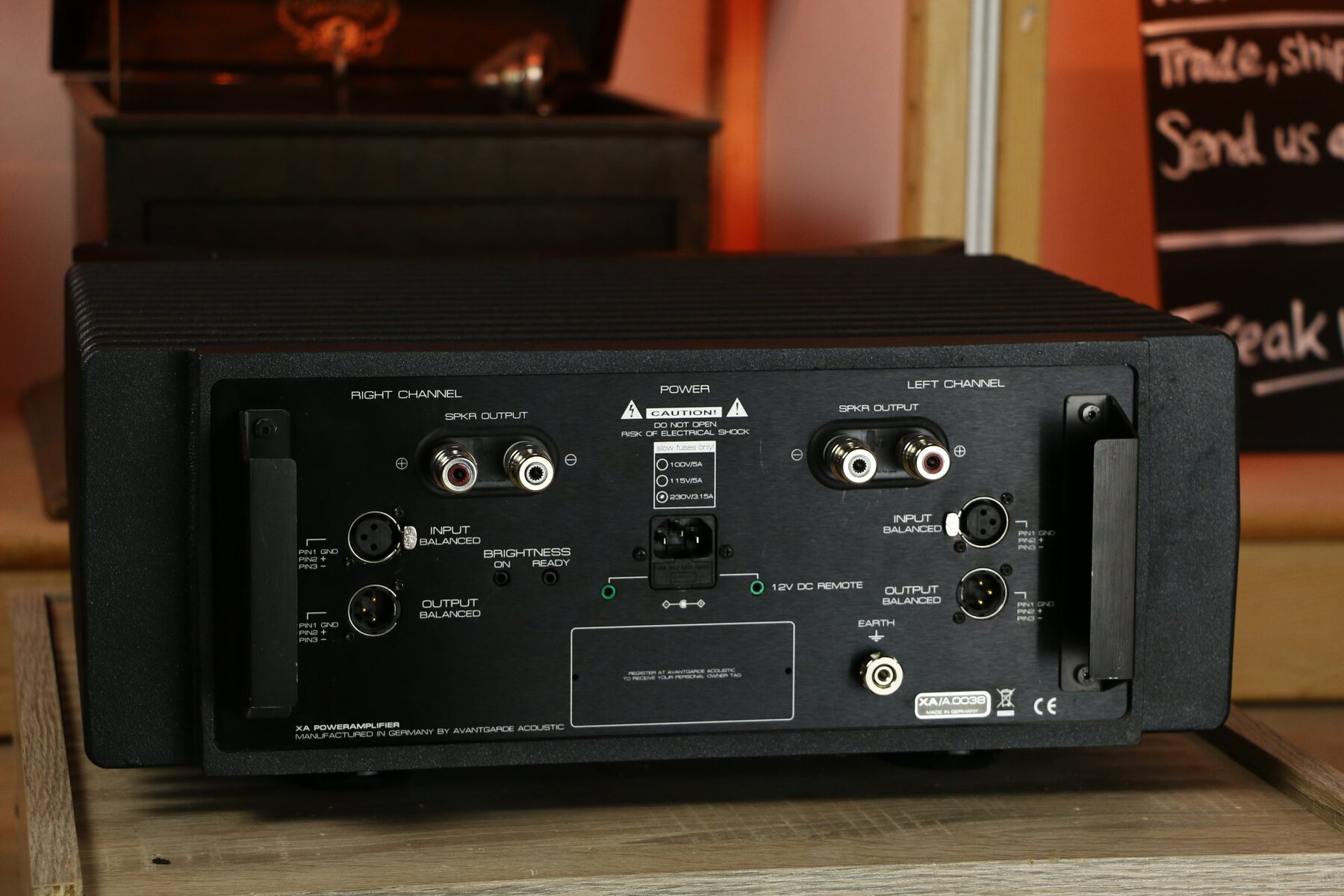

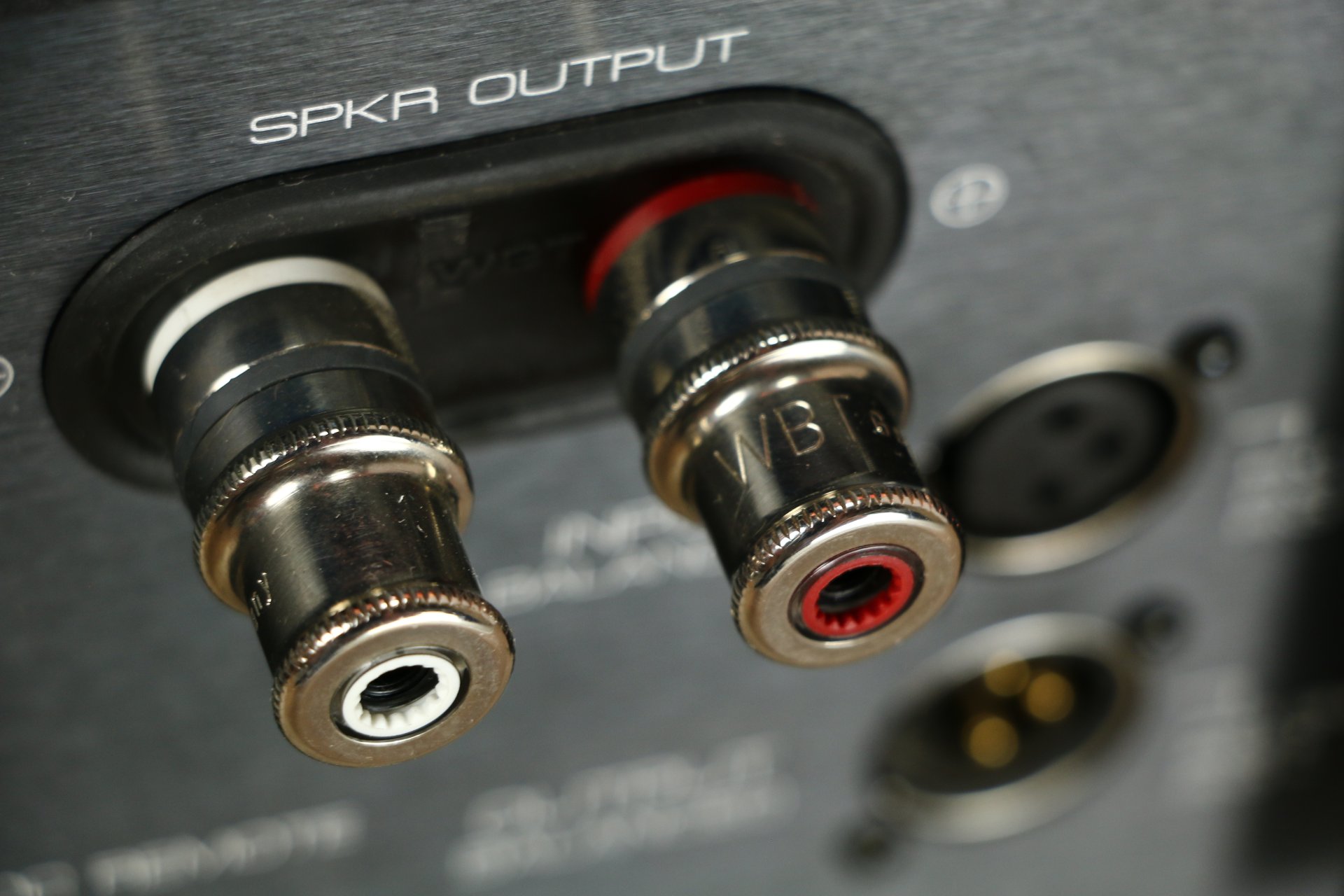

What inputs and outputs does the XA Power amplifier have?
The amplifier features one XLR line input and one XLR line output for loop-through capabilities.
Is the XA Power amplifier suitable for high-impedance speakers?
Yes, for high-impedance speakers, the amplifier delivers 2 x 67 watts at 18 ohms and in mono-bridge mode 1 x 135 watts at 18 ohms.
Can the XA Power amplifier be used in mono-bridge mode?
Yes, the amplifier can be bridged to mono using an adapter cable.
What are the dimensions and weight of the XA Power amplifier?
The amplifier measures 484.5 x 190.0 x 486.0 mm (W x H x D) and weighs 42.5 kg.

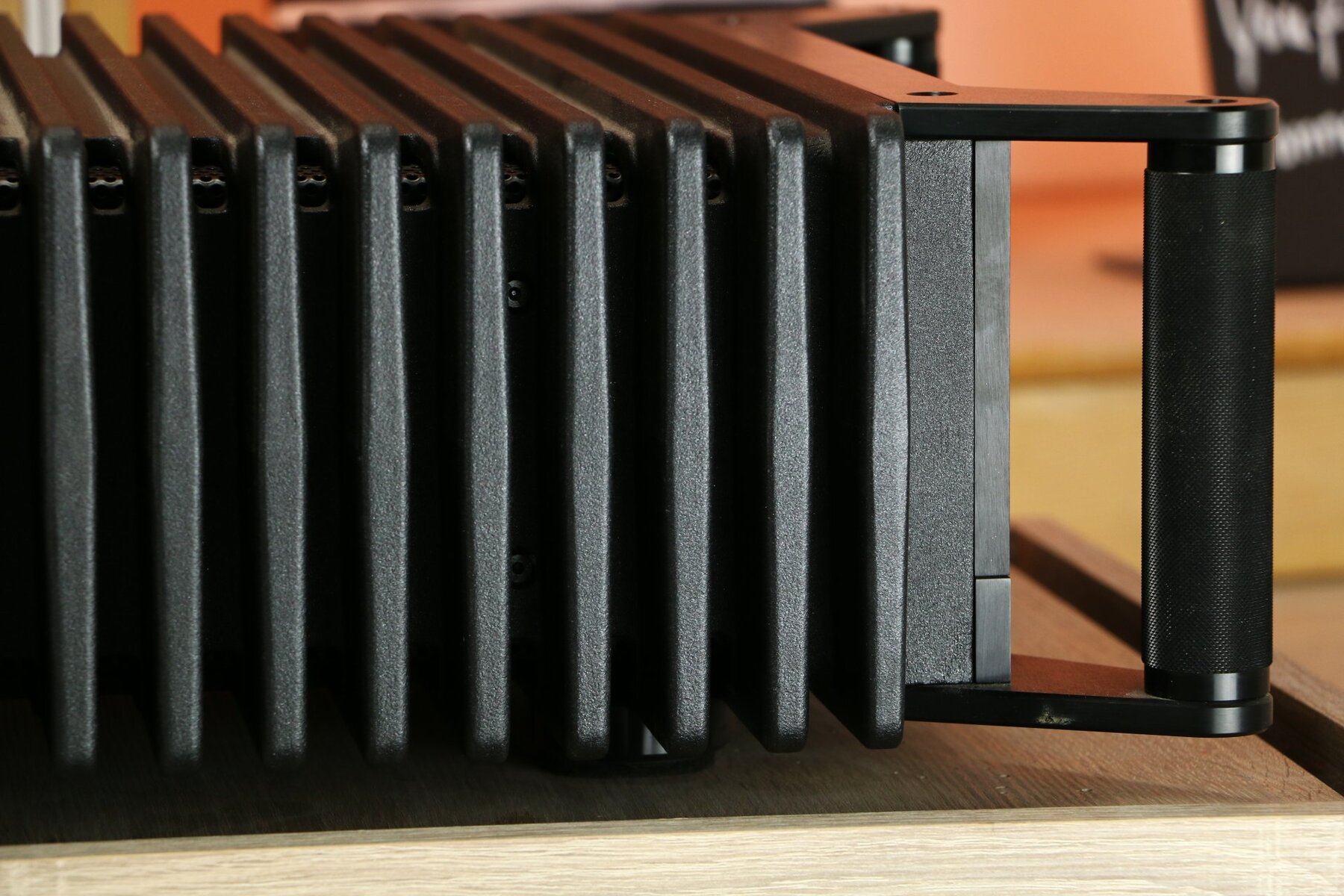

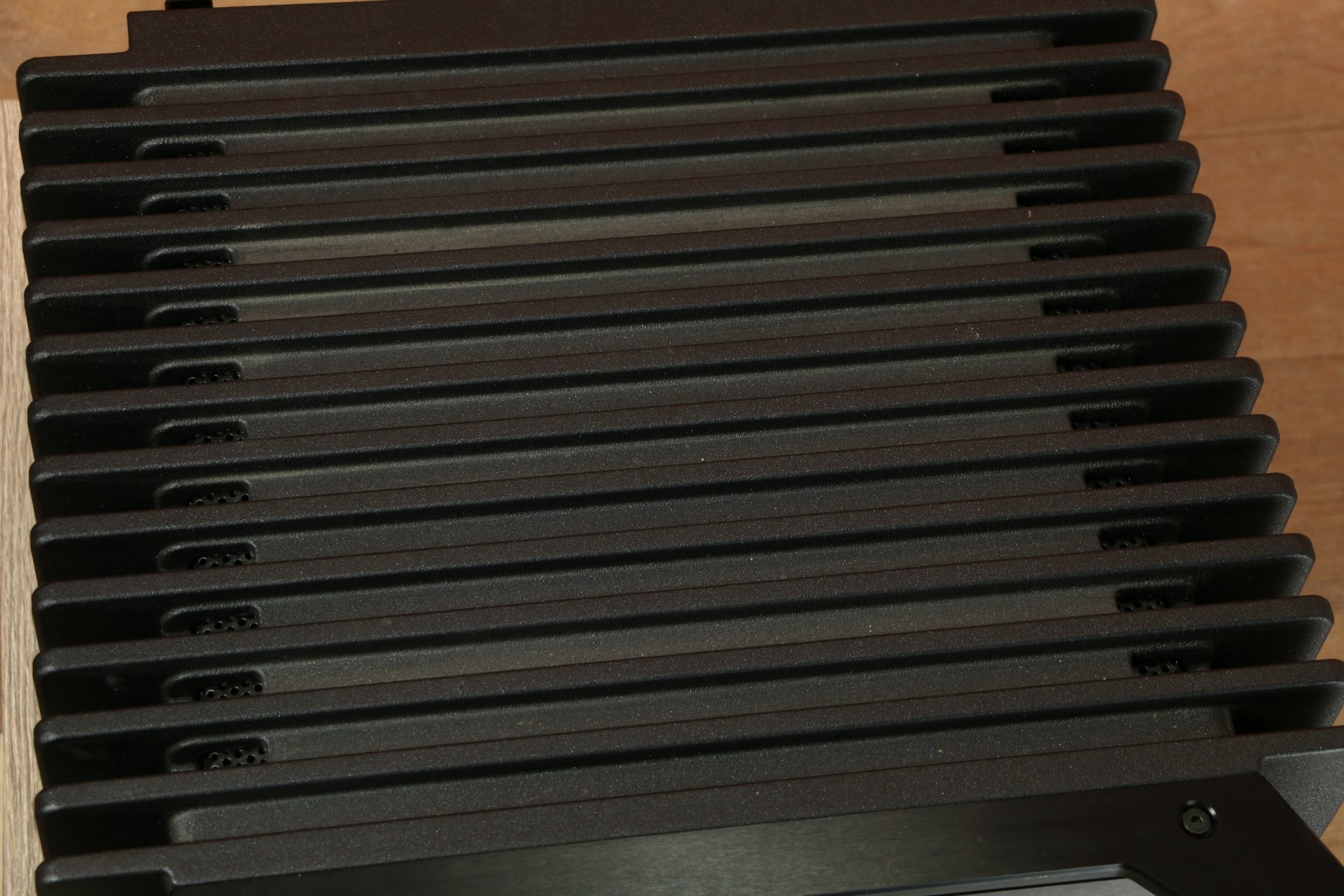

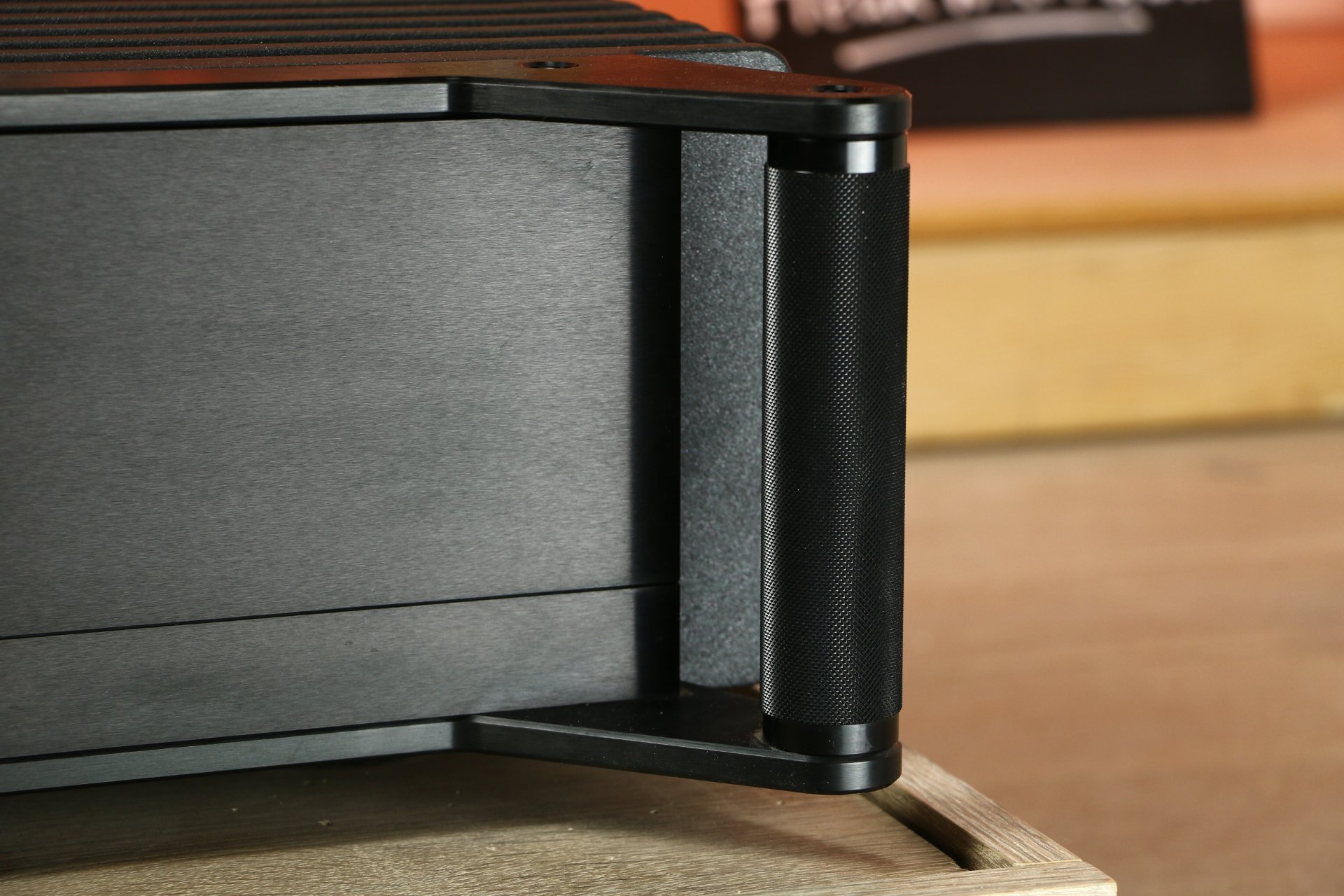

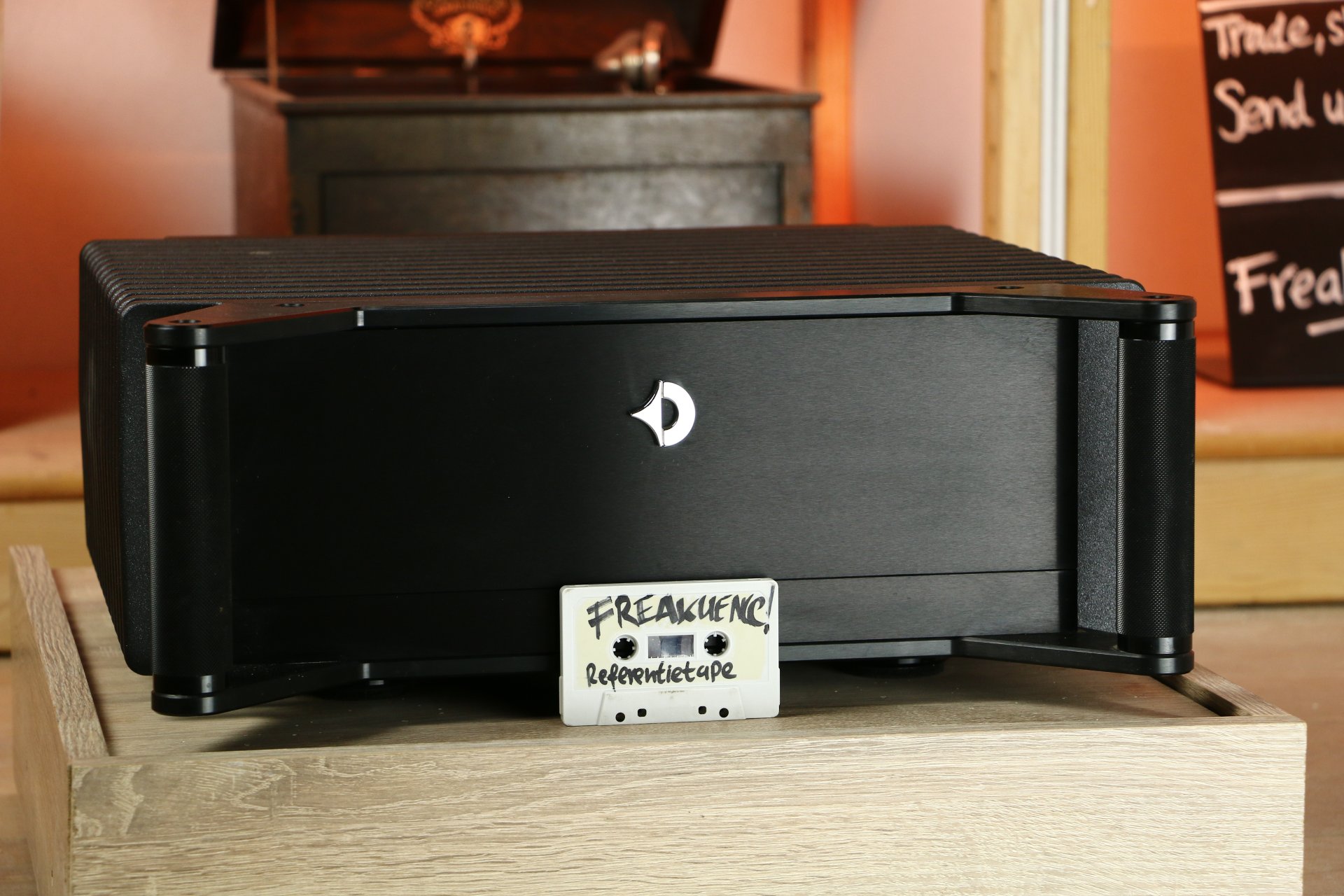

What design features does the XA Power amplifier have?

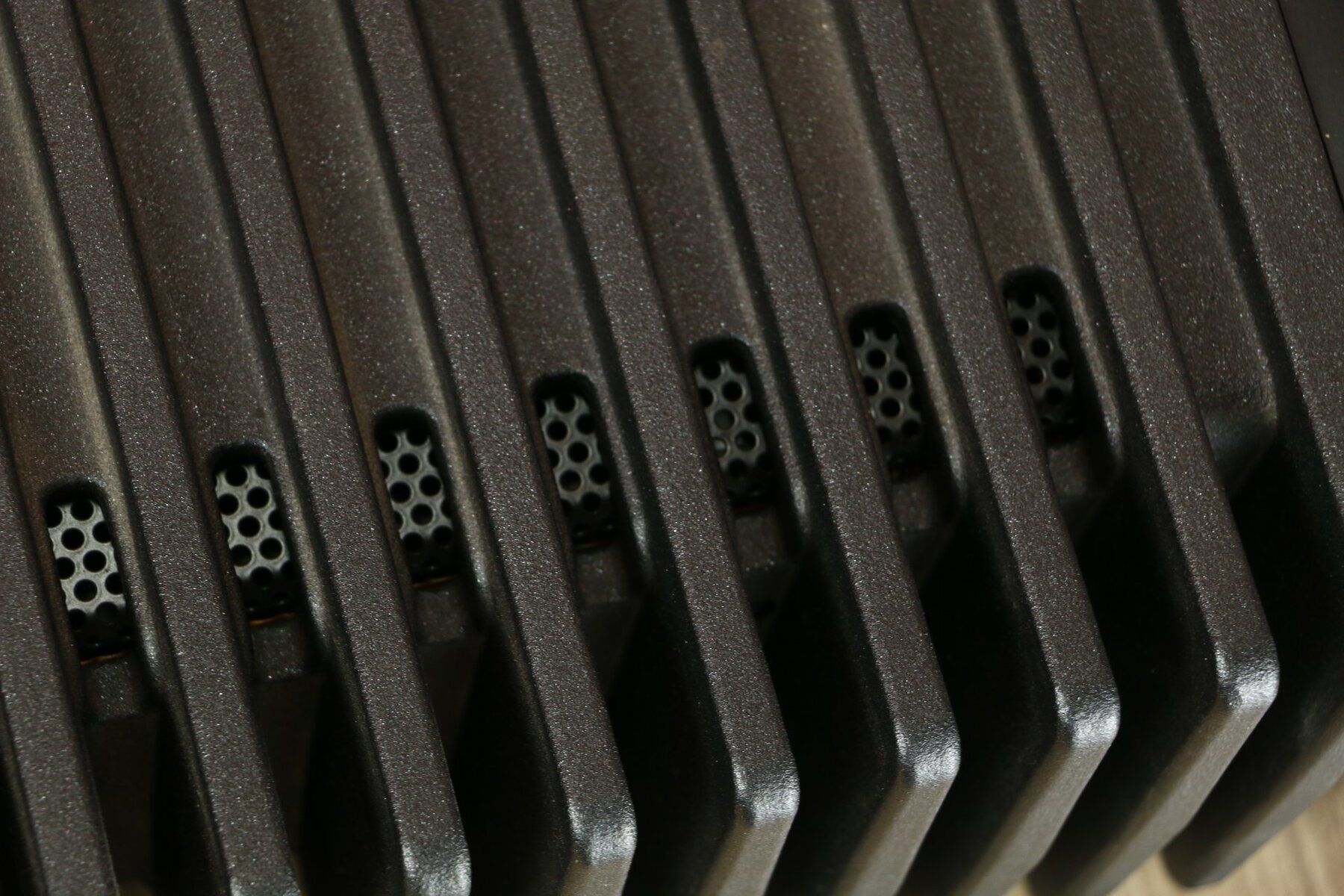

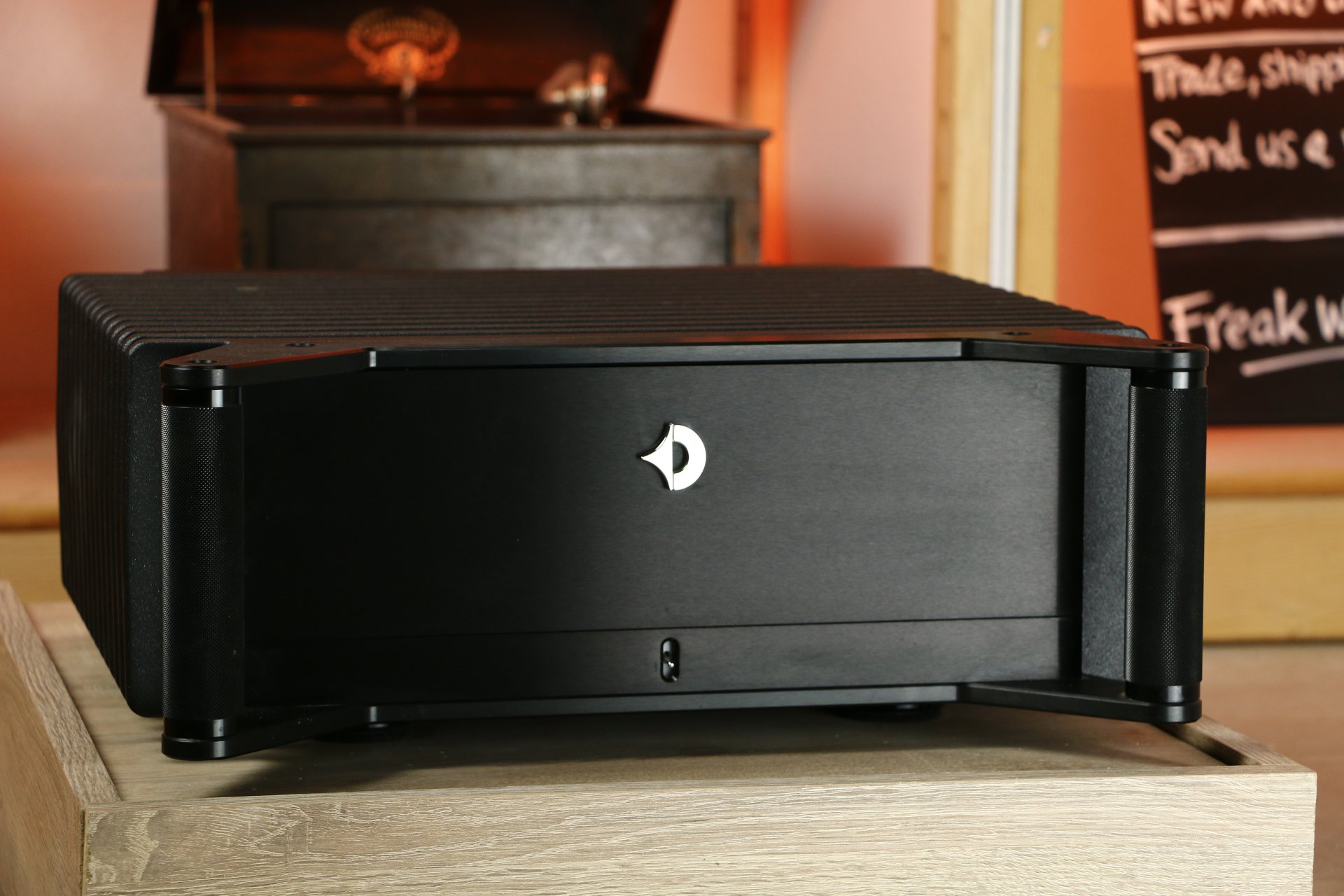

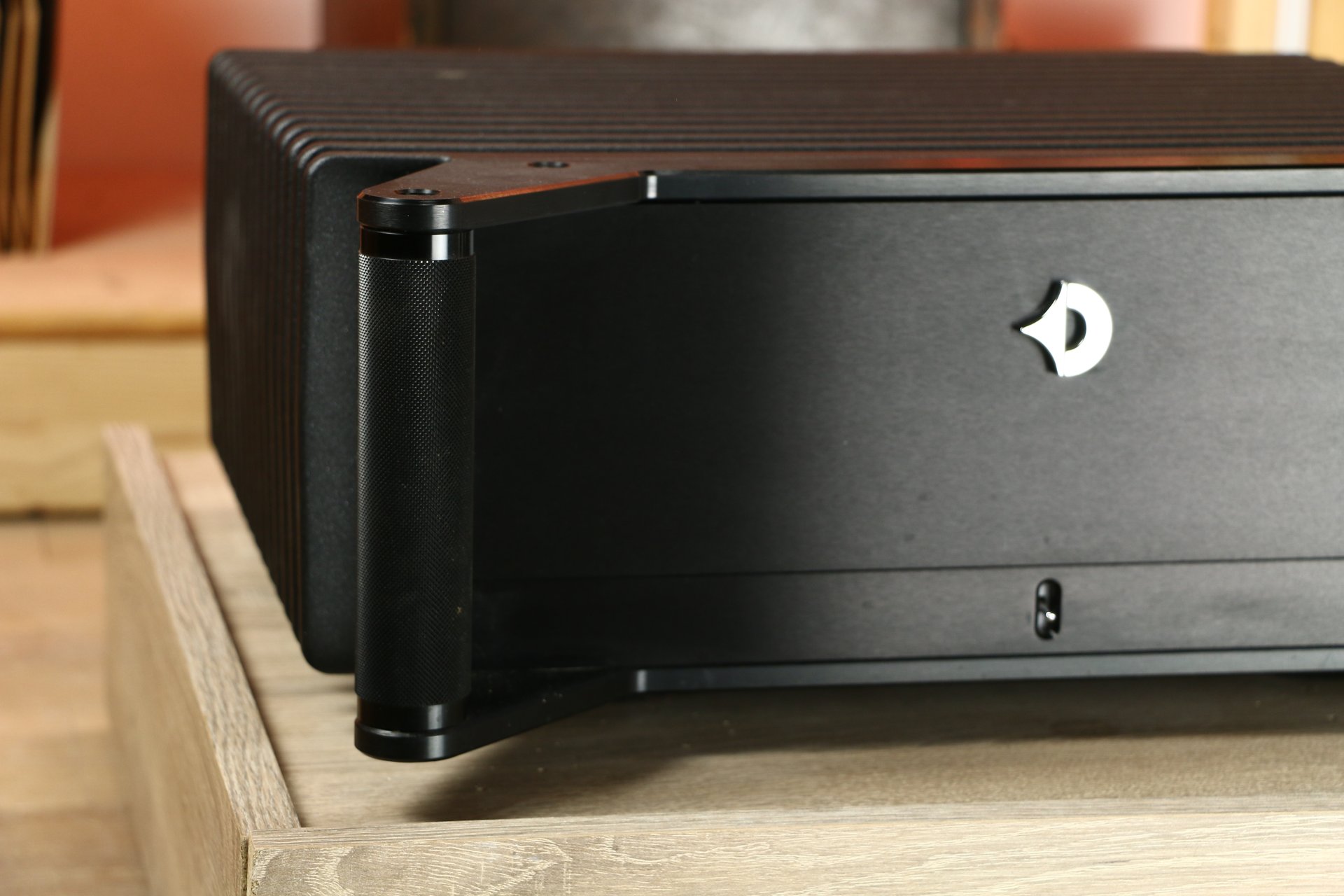

The amplifier has a two-piece aluminum die-cast chassis and is available with silver or black anodized front panels.

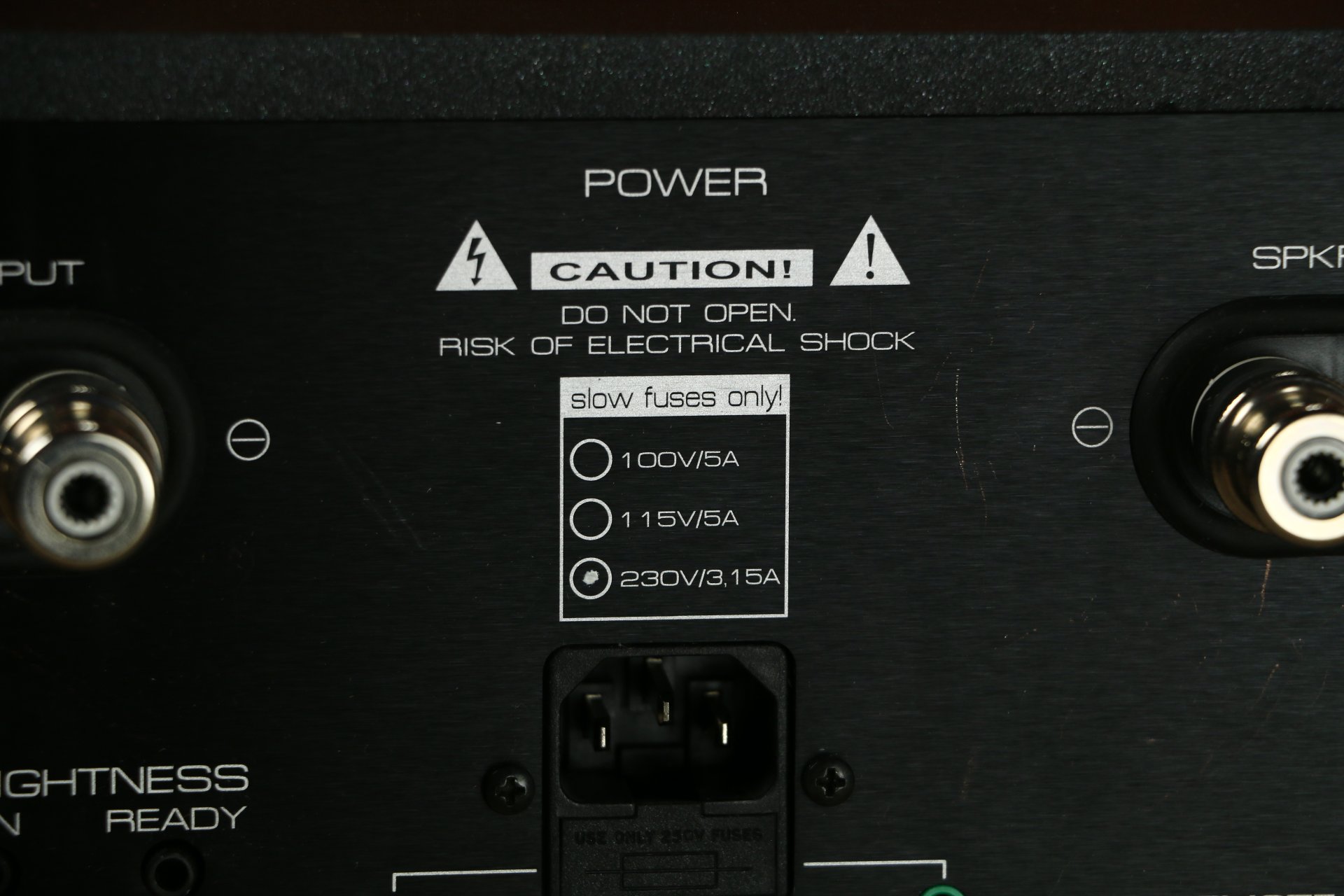

What power supply technology is used in the XA Power amplifier?
The amplifier uses a 500 VA toroidal transformer and has LC filter stages for both primary and secondary voltages.
Does the XA Power amplifier feature a feedback-free circuit design?
Yes, the amplifier has a zero feedback circuit design for pure signal reproduction.
