NAT Single HPS Version 3

Description

Description Freakuence!

Great tube box! The NAT Single HPS Version 3 delivers power, because of this a reproduction that is tight and fast. No woolly details, everything is accurate and without noise, the midrange stands like a house. At higher volumes, control is maintained without sharpness.

Retail price: 10,500.00

Details

VAT product. Entrepreneurs, people outside the EU, take advantage.

General description

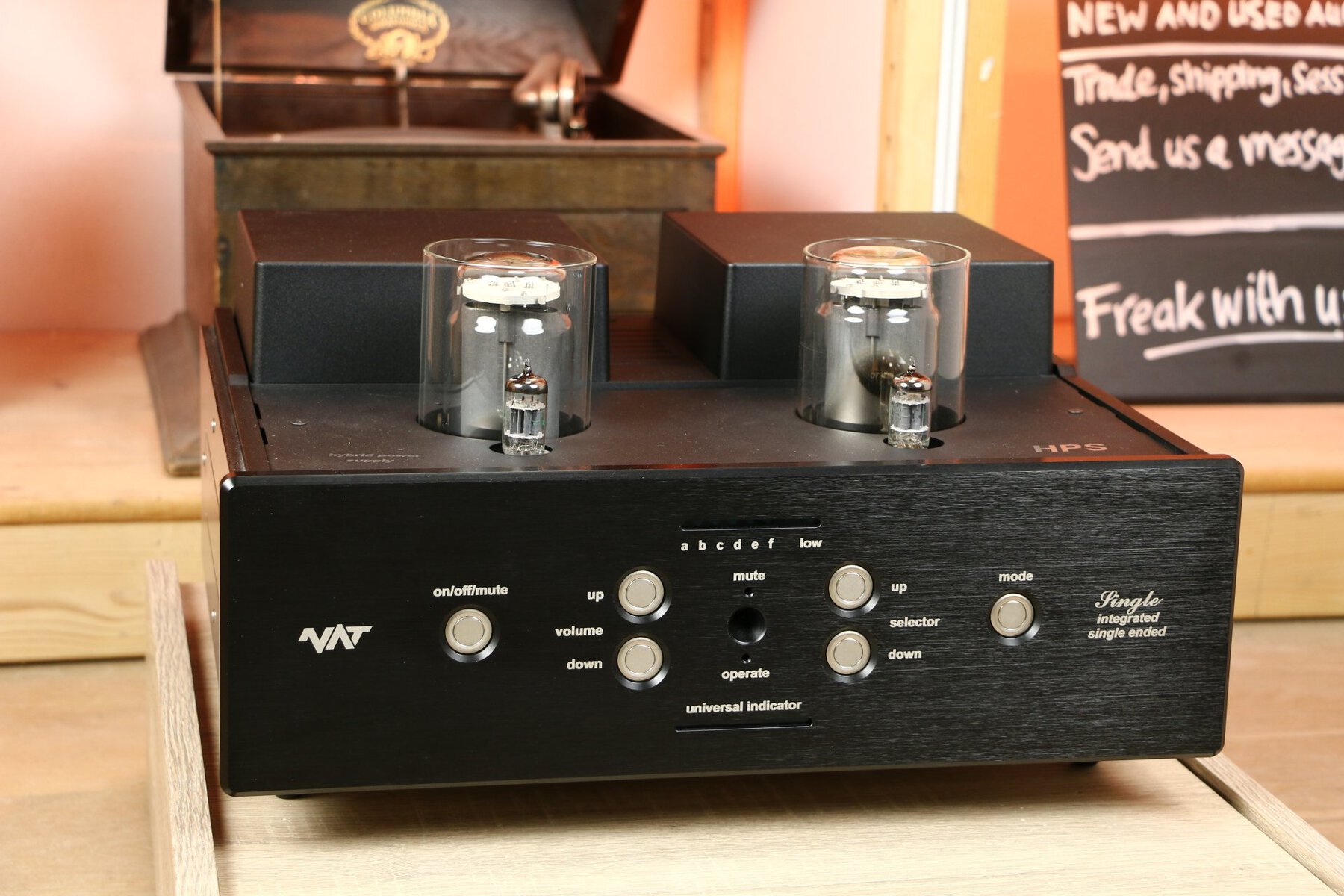

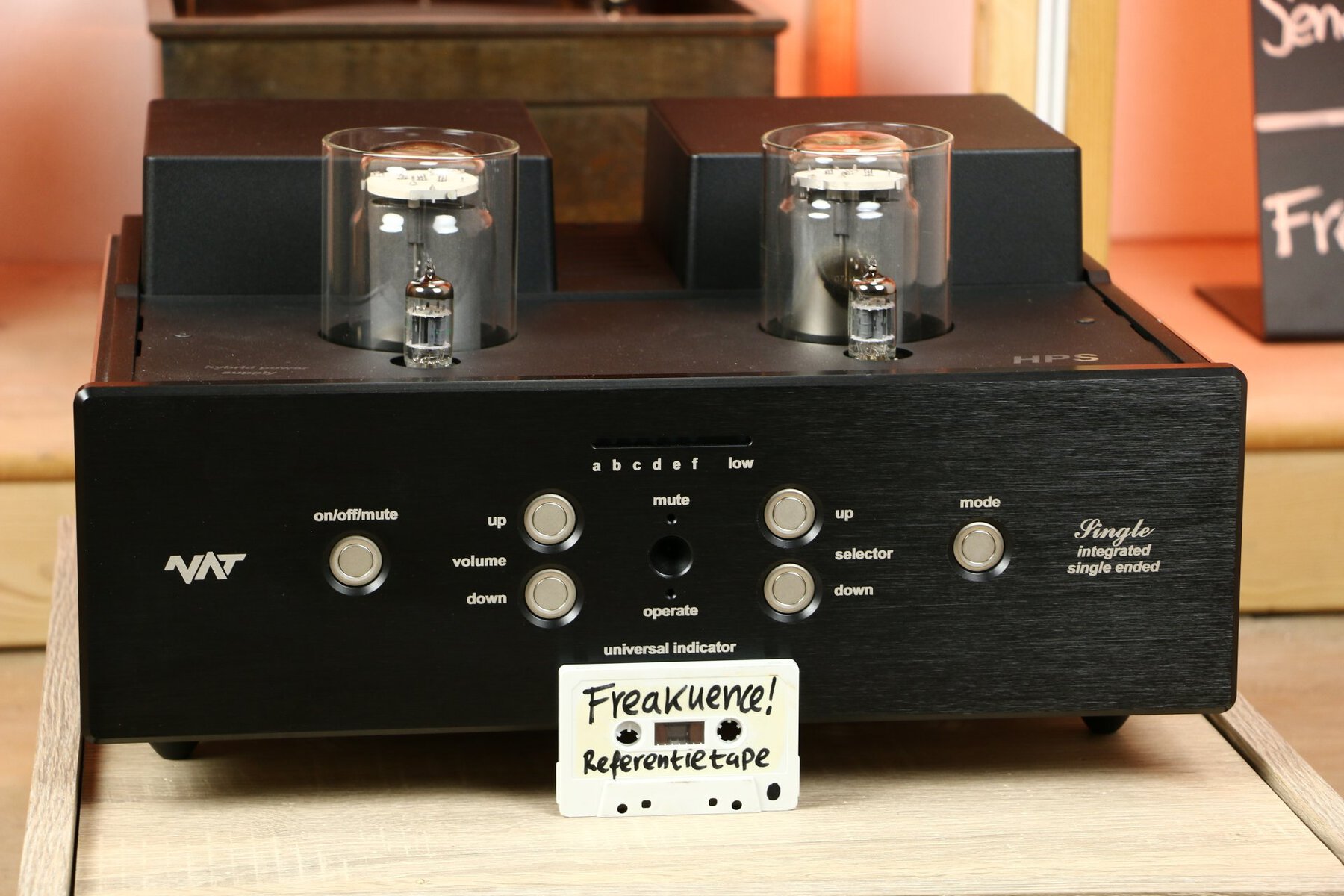

The NAT Single HPS Version 3 is an integrated tube amplifier operating in a single-ended, zero global feedback, pure Class A configuration. With an output power of 50 watts per channel, this amplifier delivers rich and detailed sound reproduction, ideal for driving speakers with stable impedance between 4 and 16 ohms.

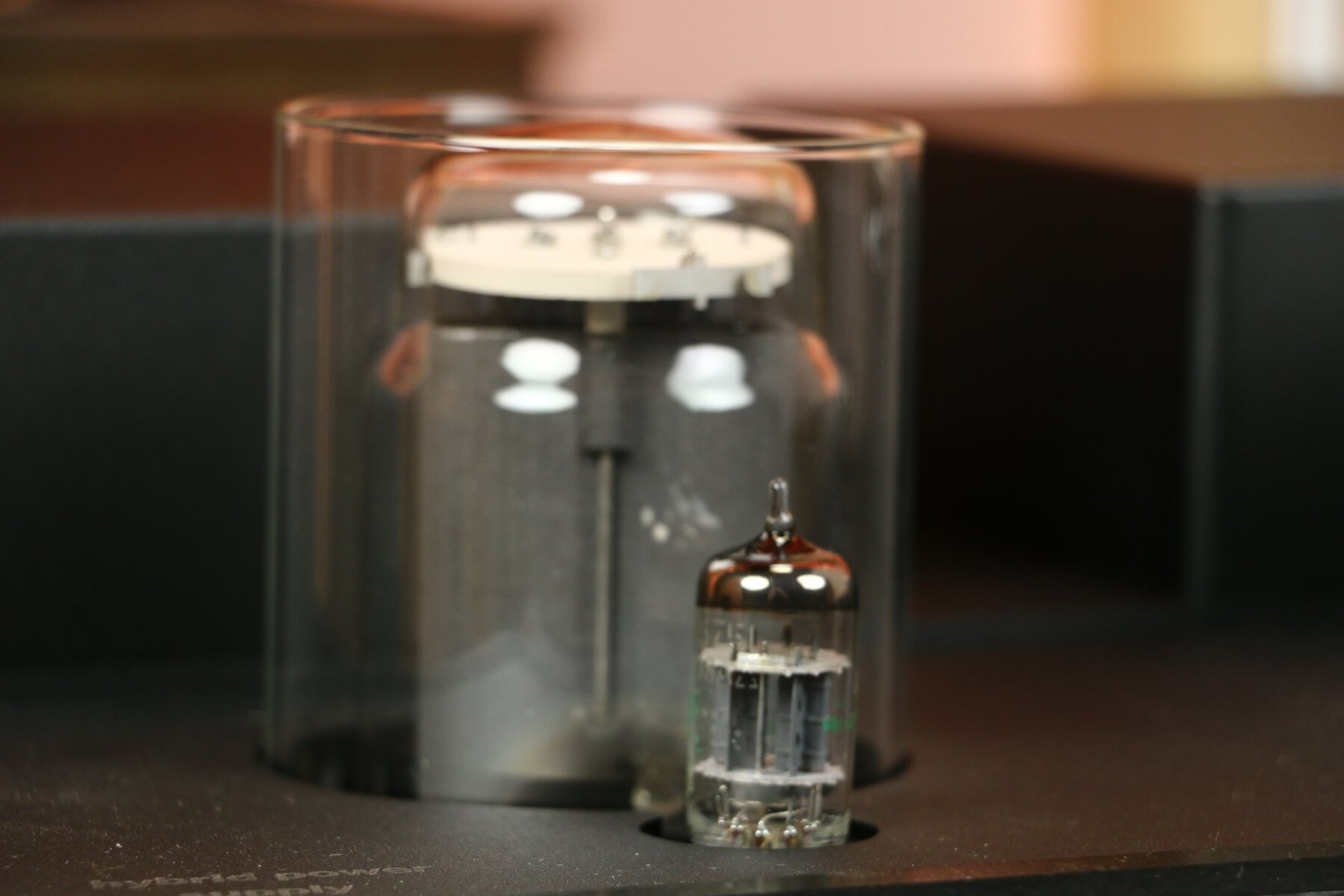

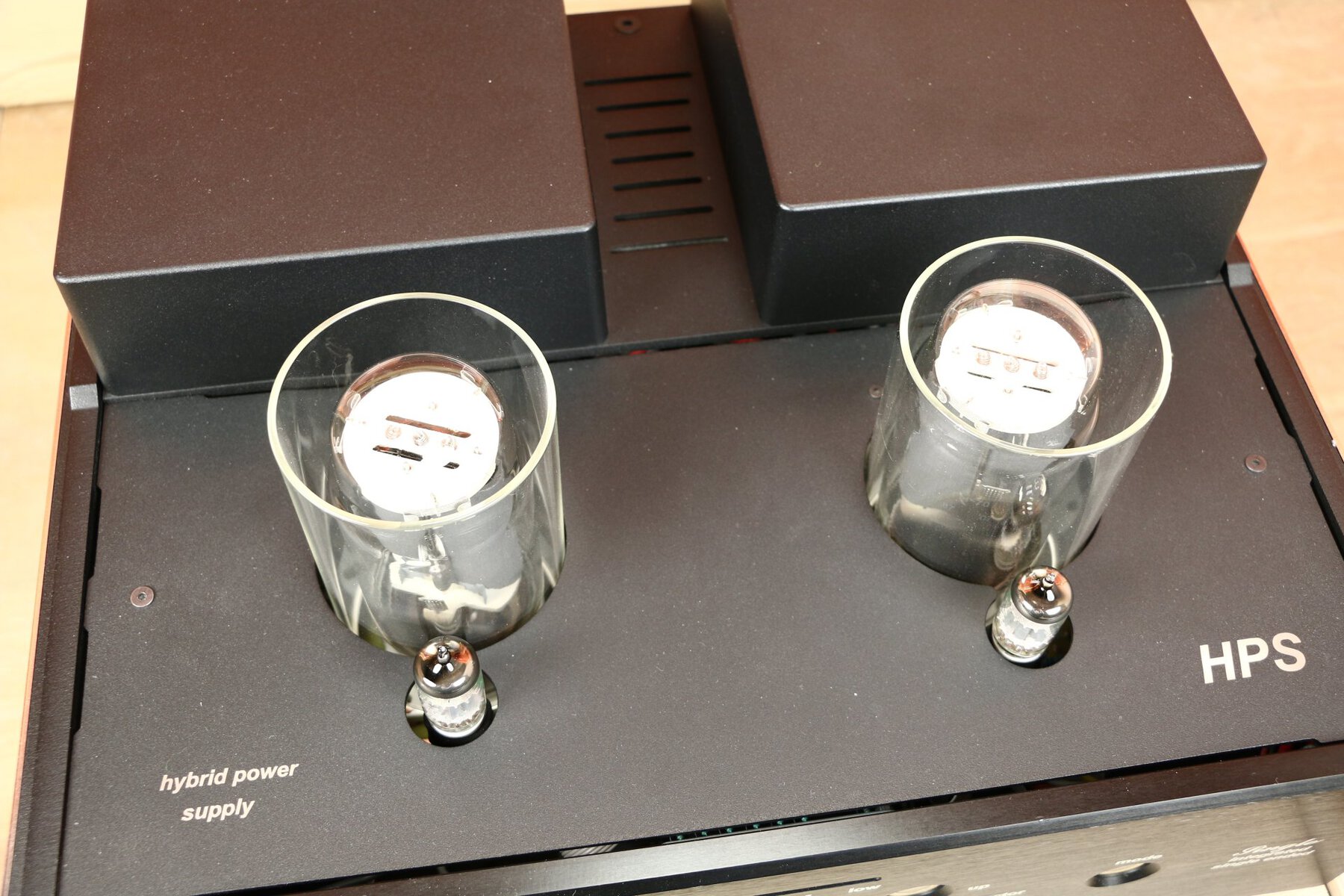

The driver stage uses an E88CC tube, known for its low distortion and manufactured to military standards. The output stage is equipped with a direct heated triode (D.H.T.) GM70 tube, which can dissipate up to 125 watts. This design provides dynamic and accurate sound reproduction with a wide frequency range.

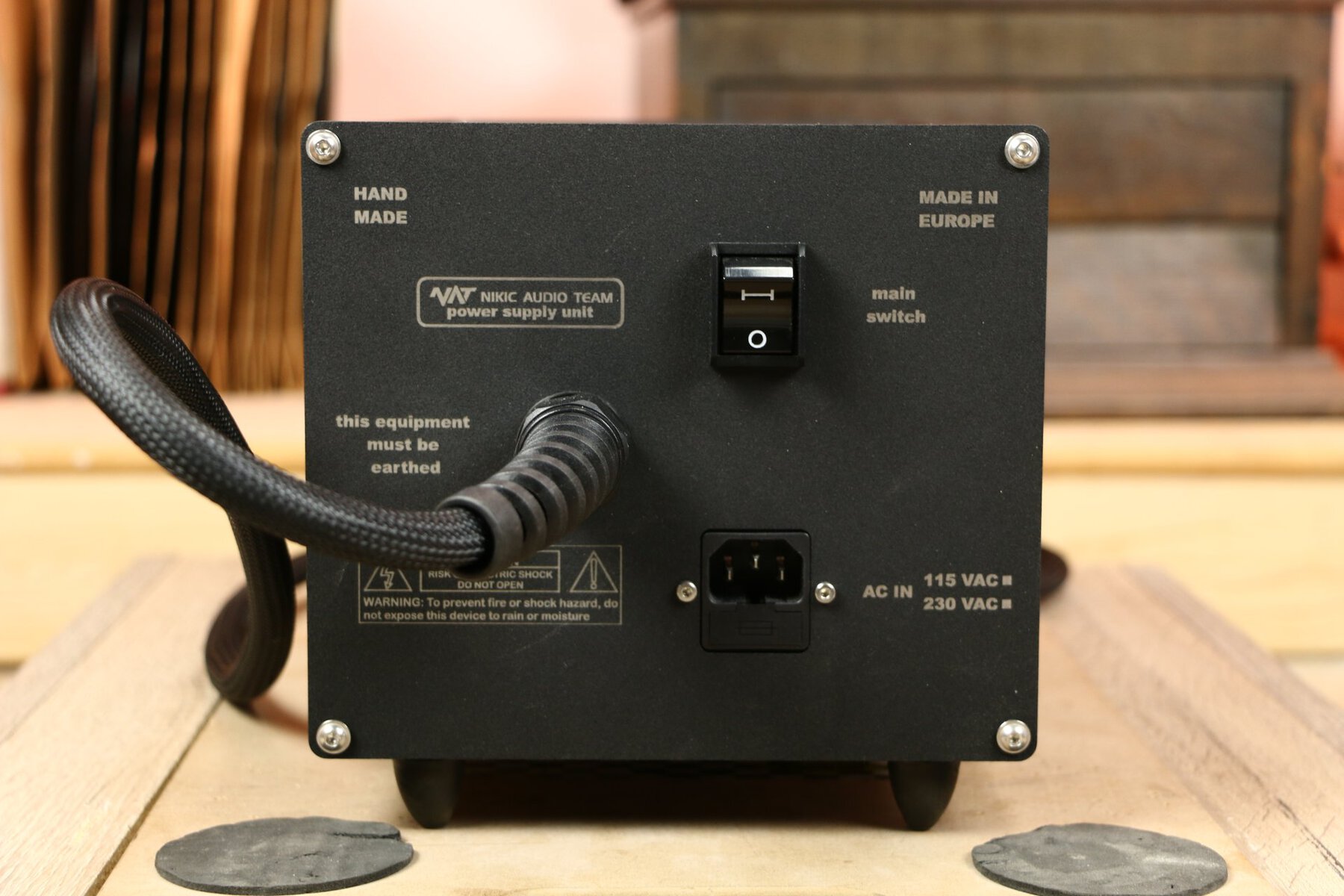

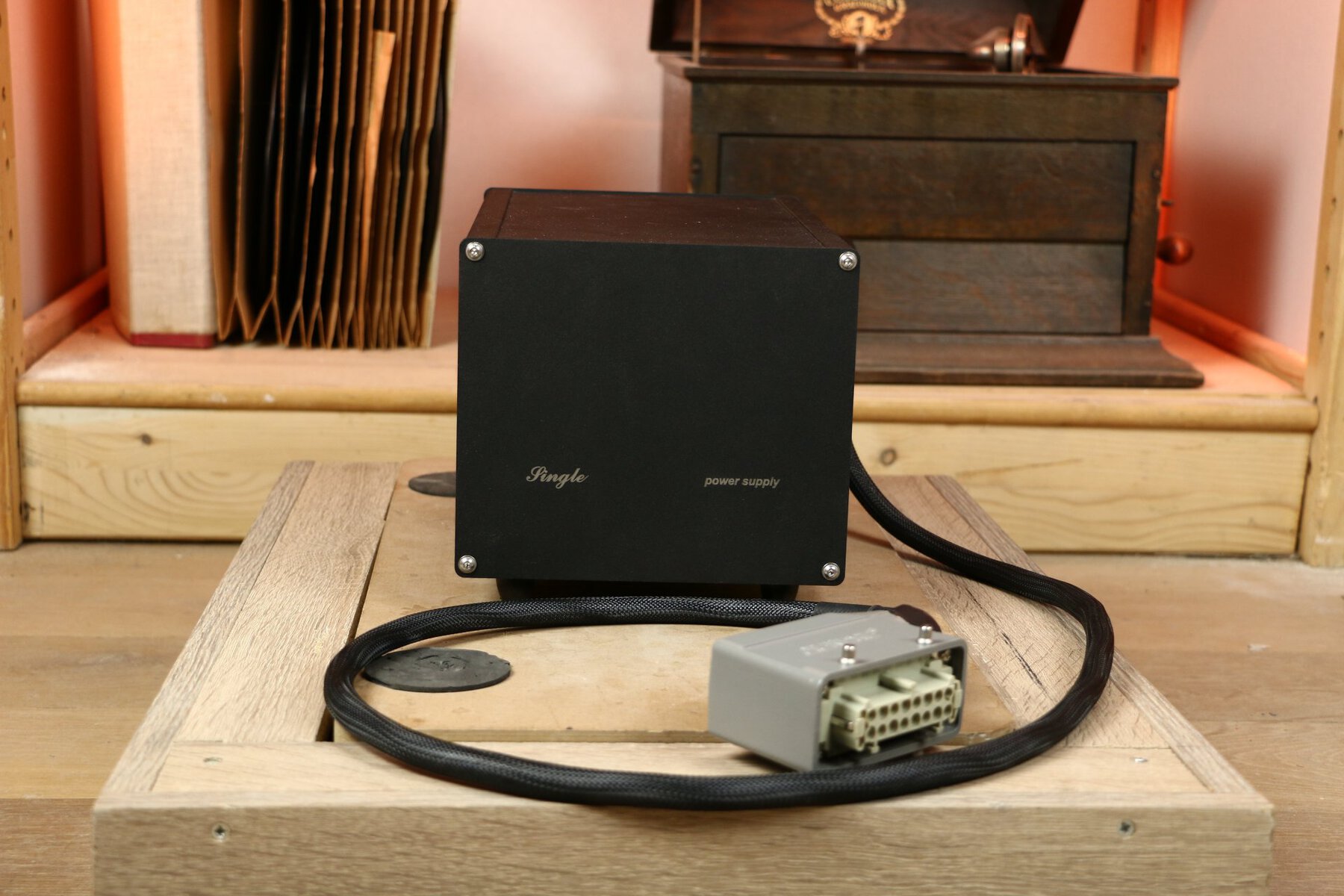

The NAT Single HPS Version 3 features a hand-wound wideband output transformer designed specifically for NAT, which contributes to excellent sound quality. In addition, the amplifier features an external power supply, which helps minimize unwanted electromagnetic interference and vibration.

Curious about the performance of the NAT Single HPS Version 3? Schedule a listening session in our listening room to experience this integrated tube amplifier for yourself.

NAT Single HPS Version 3 Specifications

Type: Single-Ended Tube-Based Zero Global Feedback Power: Up to 52 W @ 4 or 8 ohms Frequency Response: 10 to 110 kHz, -3 dB; 20 Hz to 20 kHz, ±0.5 dB Noise: 15 kohms Output Impedance: 10 (referenced to an 8-ohm load at zero global feedback) Stereo Separation: >95 dB Tube Complement: 2 x 6N23P (E88CC) & 2 x GM70 per unit Power Requirements: 100 VAC to 240 VAC (50 to 60 Hz), max. 390 VA Dimensions: 19″ (483 mm) wide × 15.7″ (400 mm) deep × 10.2″ (260 mm) high NET Weight: approx. 74 lb. (33.5 kg)/unit + 16.5 lb. (7.5 kg)/power supply TOTAL Weight: approx. 114.6 lb. (52 kg) packed in a polypropylene crate

Brand history

NAT is a fairly young player from Serbia (in Kragujevac to be exact, by Dejan Nikic) and by their own admission are among the most innovative manufacturers in the world in the tube and hybrid high-end amplification segment. NAT designs and manufactures vacuum tube-based preamplifiers, integrated amplifiers and power amplifiers whose main features are triode configuration, short signal path and zero feedback.

Additional information

Kleur	Zwart
Merken	NAT

Questions & Answers

What tubes are used in the NAT Single HPS Version 3?

The amplifier uses 2 x 6N23P (E88CC) and 2 x GM70 tubes per unit.

What is the output power of the NAT Single HPS Version 3?

Output power is up to 52 W at 4 or 8 ohms.

What is the frequency response of the NAT Single HPS Version 3?

The frequency response is 10 Hz to 110 kHz (-3 dB) and 20 Hz to 20 kHz (+/-0.5 dB).

What is the total harmonic distortion (THD) of the NAT Single HPS Version 3?

The THD is less than 0.15%.

What input sensitivity and gain does the NAT Single HPS Version 3 have?

The input sensitivity is 0.4 V for full output, with a gain of 34 dB (factor of 50).

What are the dimensions and weight of the NAT Single HPS Version 3?

The dimensions are 483 mm wide, 400 mm deep and 260 mm high for the amplifier; the power supply is 190 mm wide, 300 mm deep and 190 mm high. The net weight is 33.5 kg for the amplifier and 7.5 kg for the power supply.

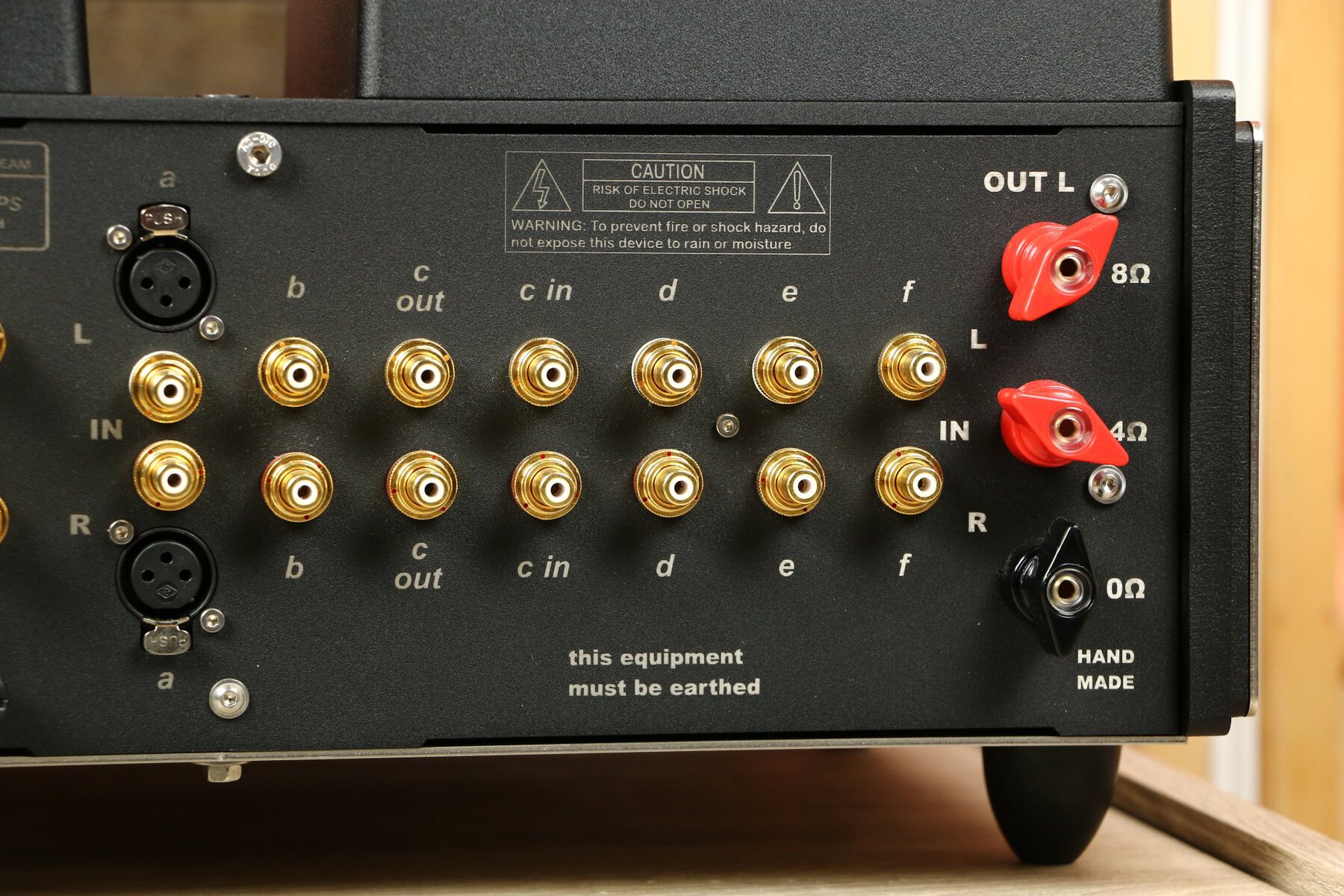

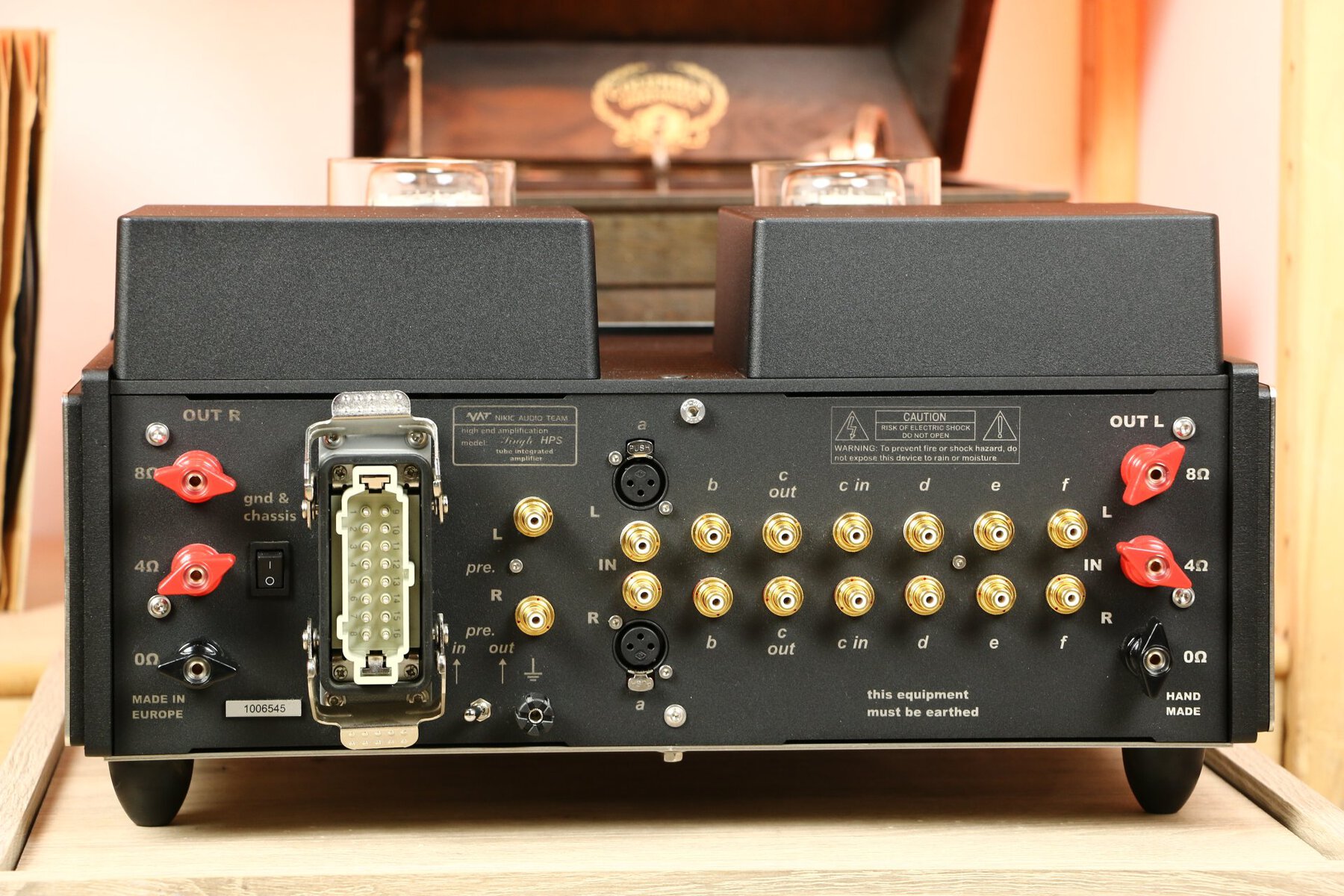

What connection options does the NAT Single HPS Version 3 offer?

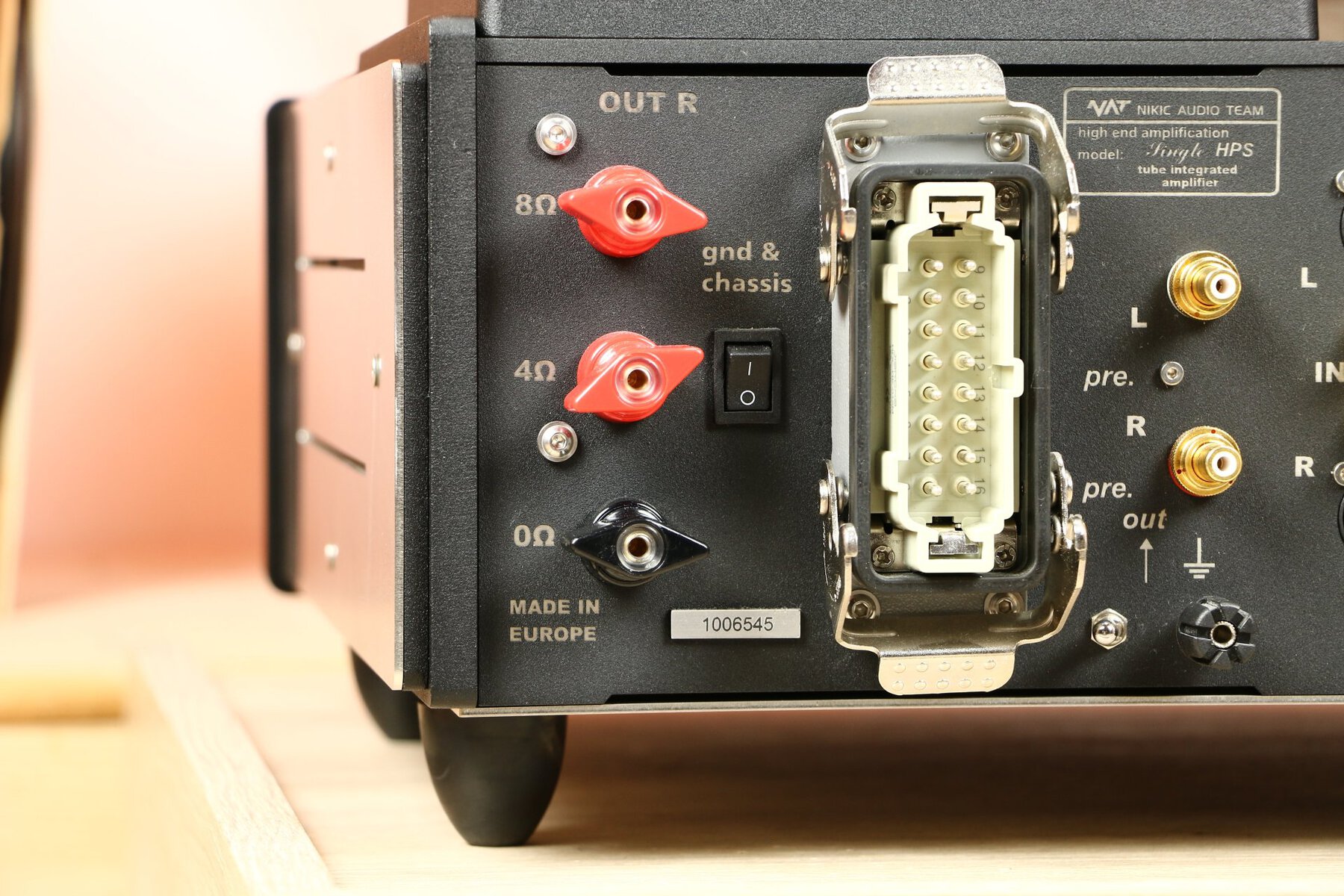

The amplifier features pre-out outputs for a subwoofer and power-in inputs to use another preamp.

Is there a remote control available for the NAT Single HPS Version 3?

Yes, an aluminum remote control is included.
