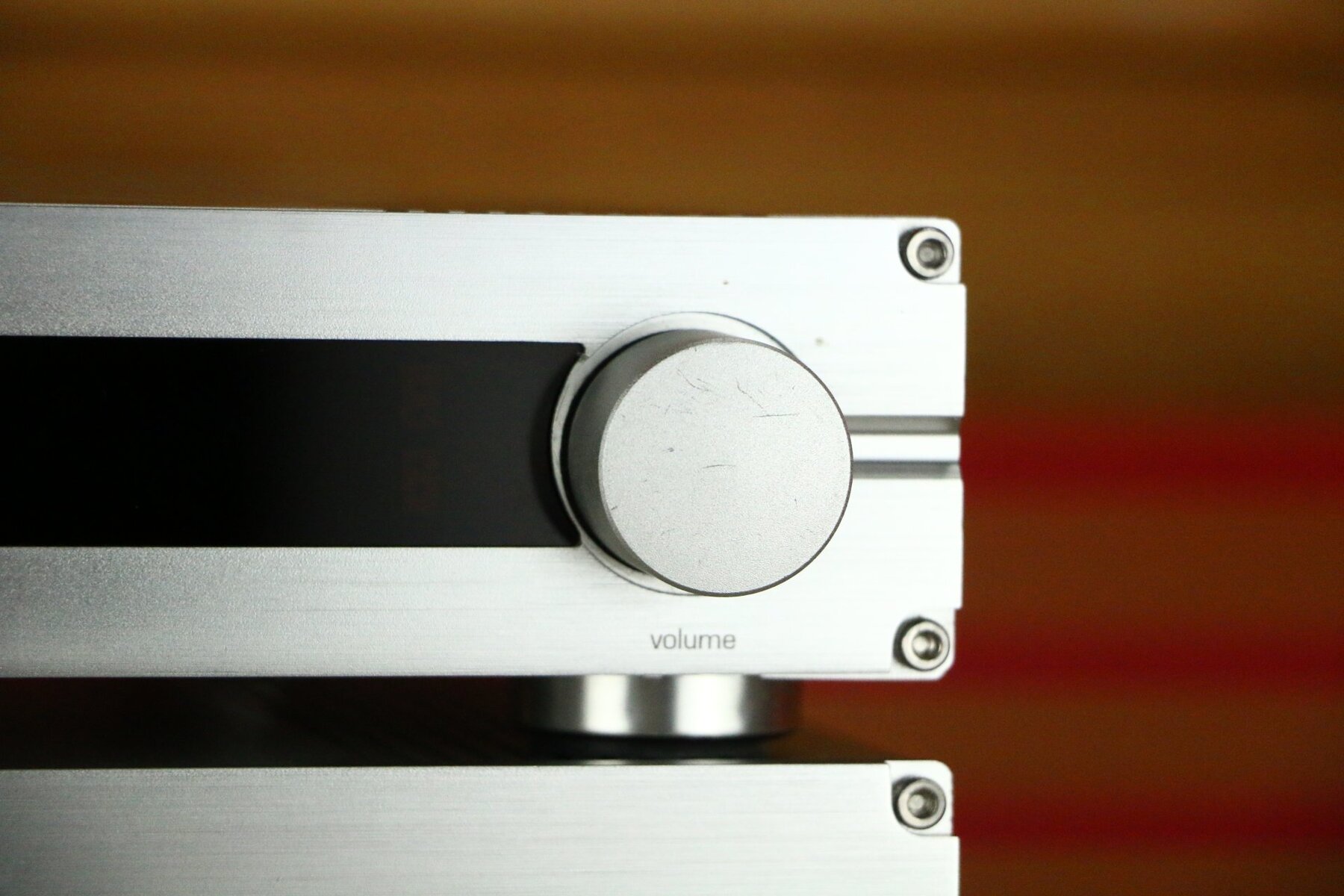

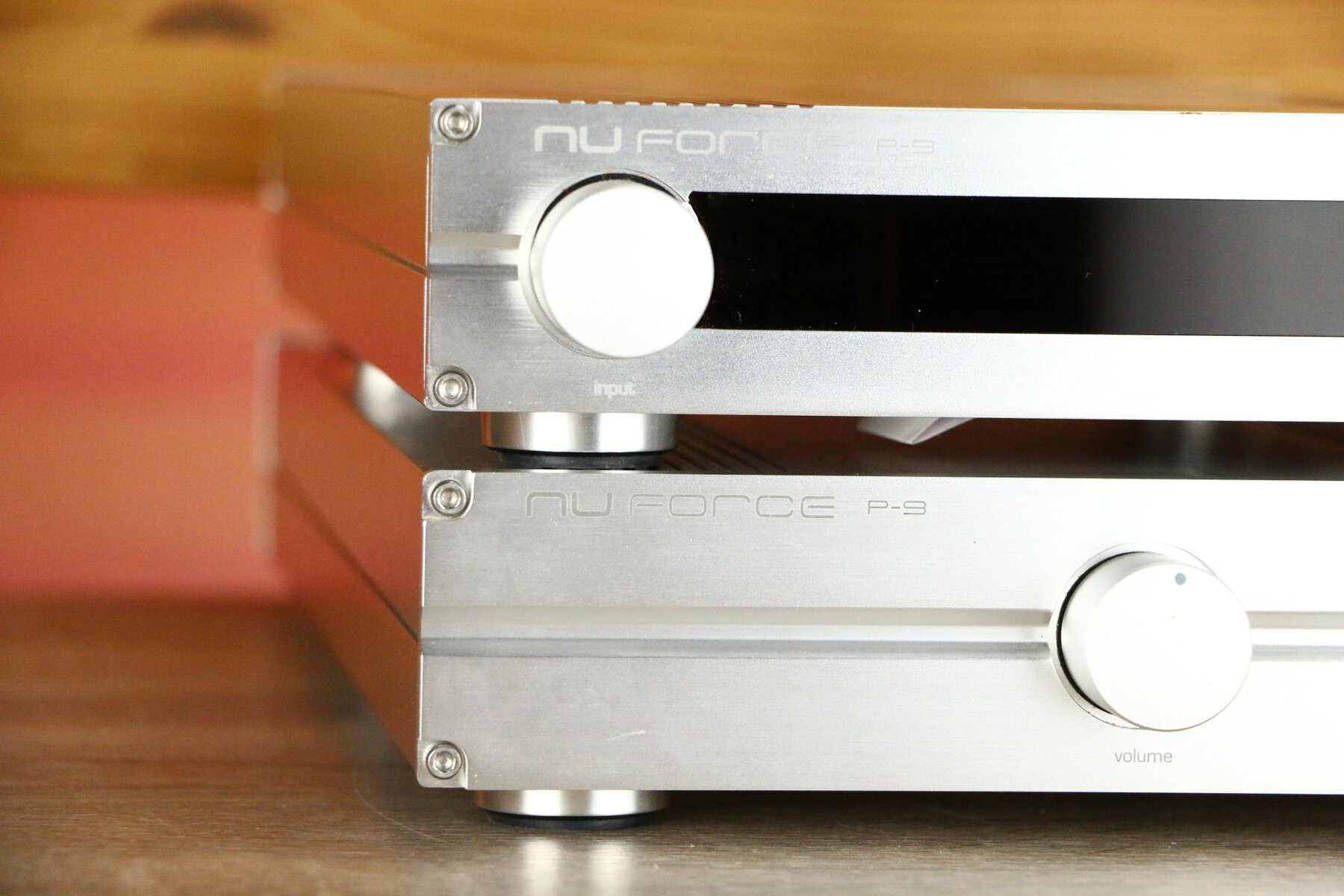

How does the NuForce P-9's "Dual Drive" volume mechanism work?

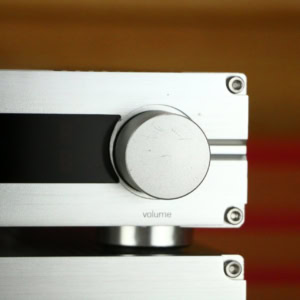

The "Dual Drive" volume mechanism combines a remote digital volume control with an analog ALPS potentiometer for precise manual adjustments. Both remain synchronized for consistent volume control.

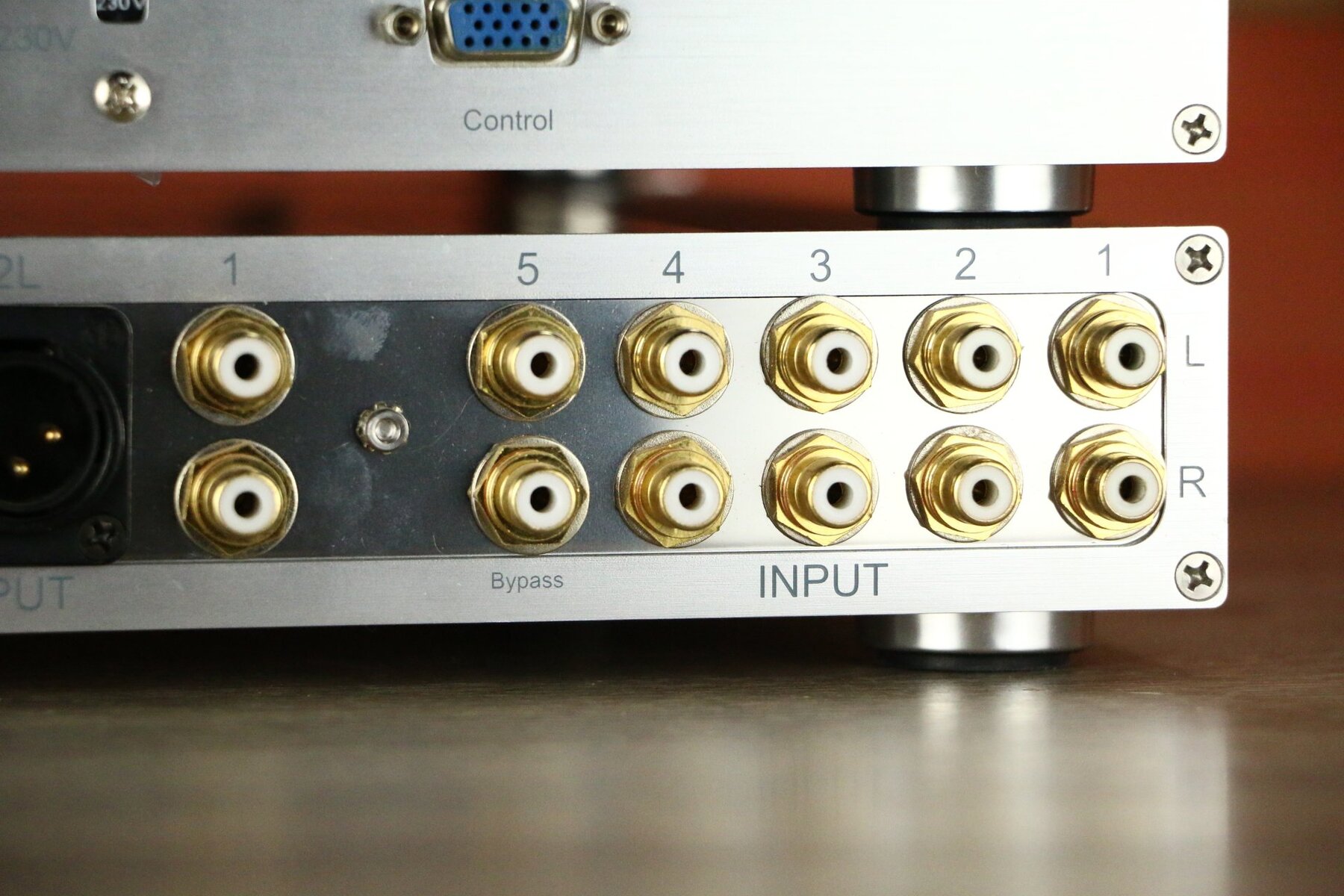

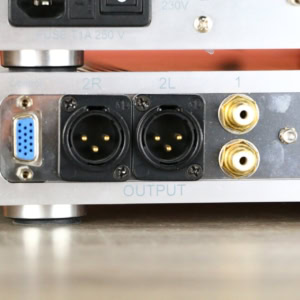

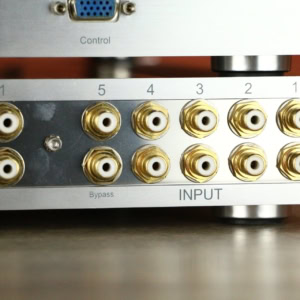

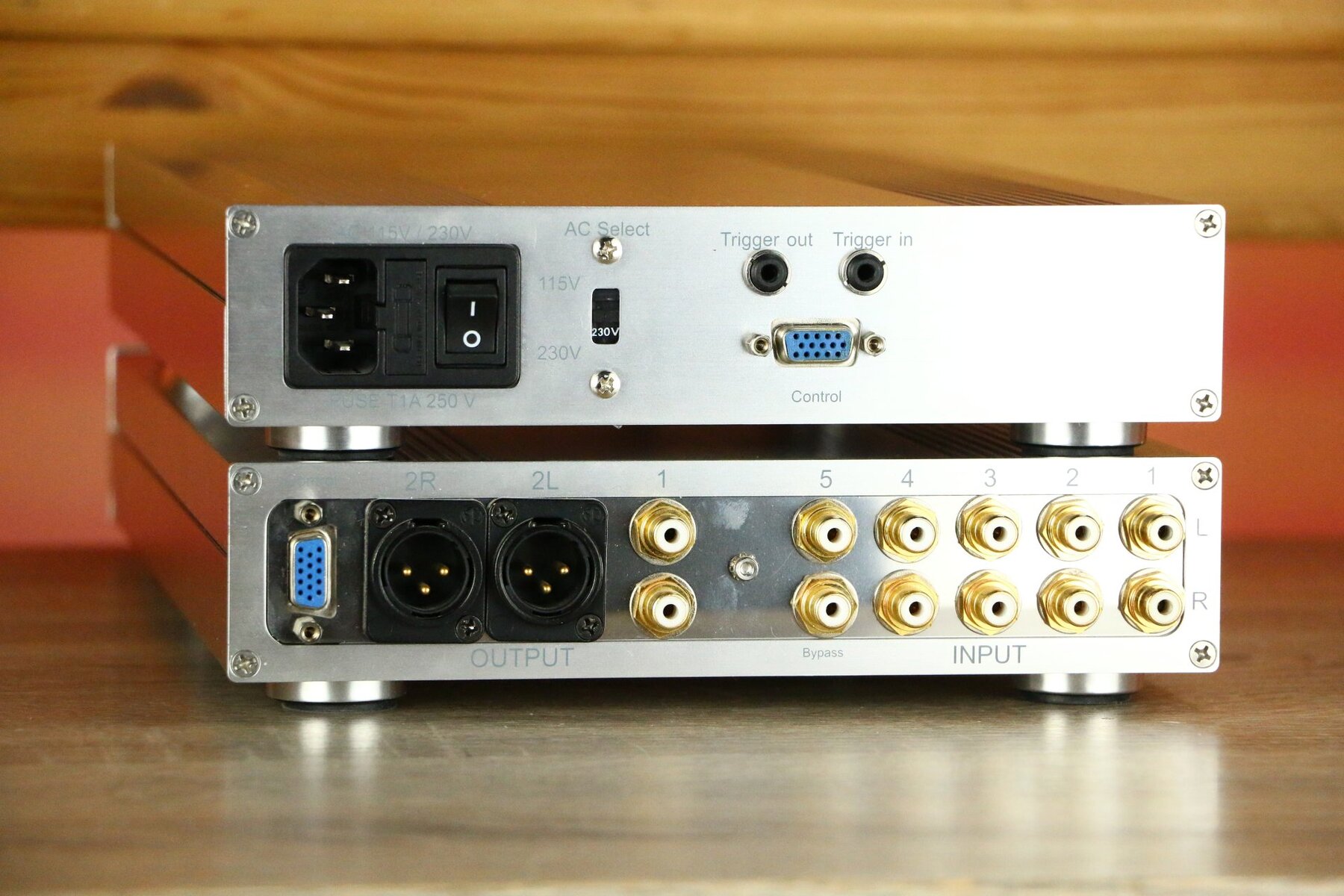

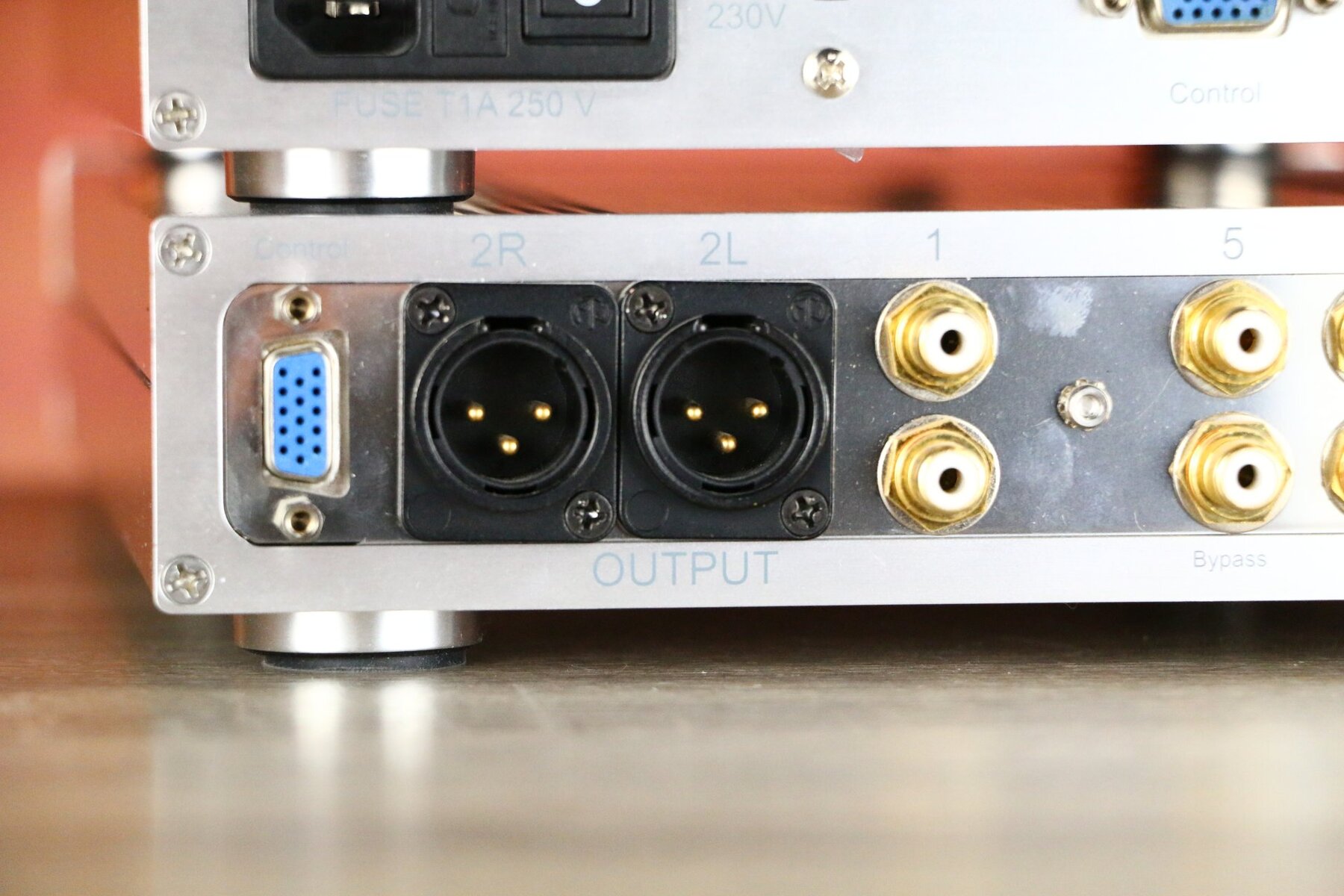

What connection options does the NuForce P-9 offer?

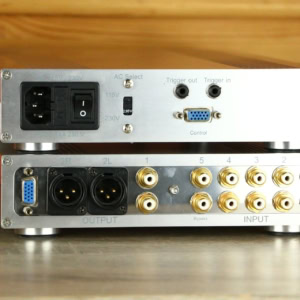

The P-9 features five RCA inputs, including a Home Theater bypass, and both RCA and XLR outputs. Note that the XLR outputs are not balanced.
Is the NuForce P-9 compatible with sources with high output impedance?
With an input impedance of 10k ohms, the P-9 may be less suitable for sources with high output impedance, such as some tube equipment.

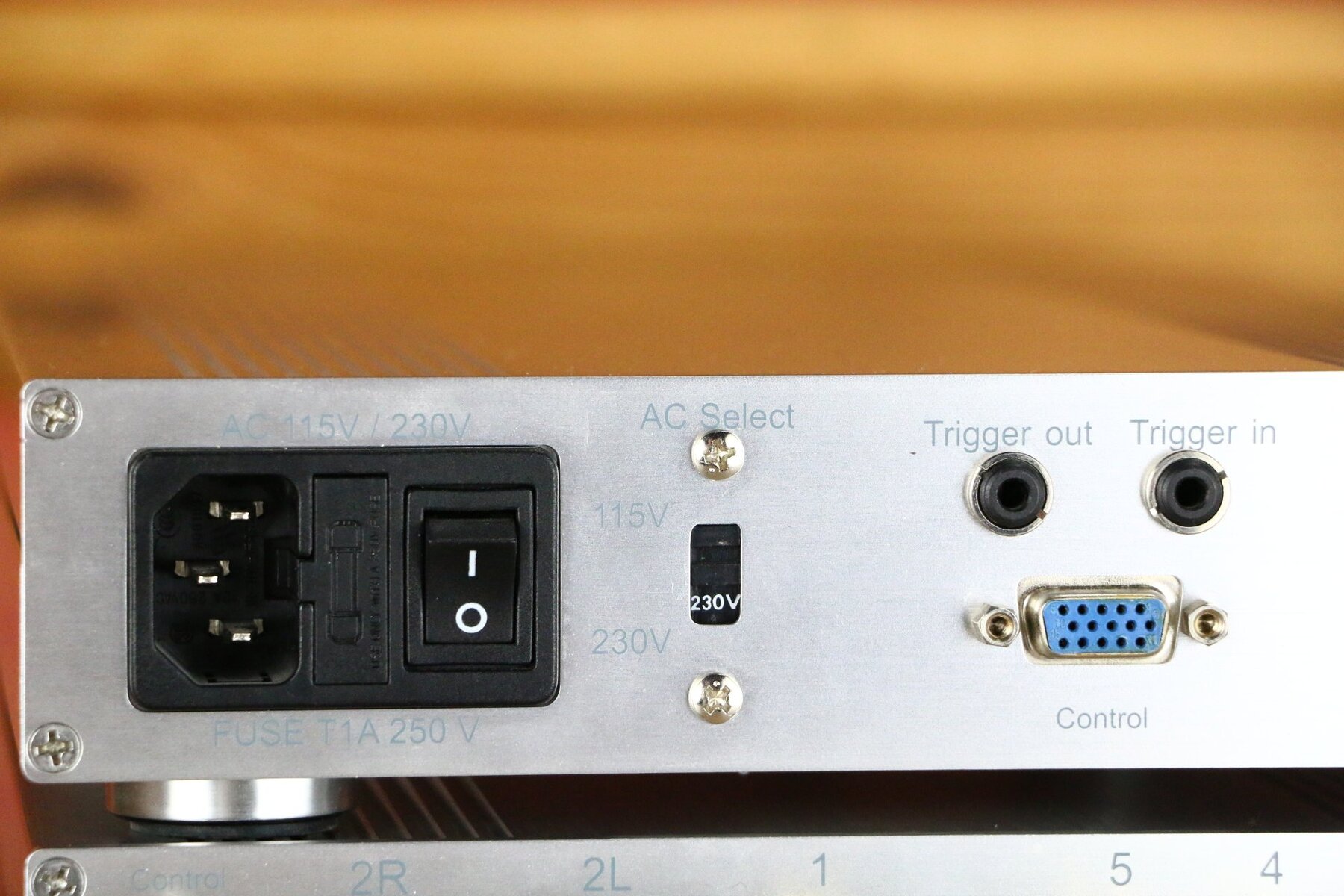

How is the P-9's home theater bypass activated?
Home Theater bypass can be activated via a 12V trigger, allowing seamless integration with an AV processor or receiver without manual intervention.
What frequency response does the NuForce P-9 have?
The P-9 has a frequency response of +0.02dB/-0dB between 20Hz and 20kHz, ensuring accurate and neutral sound reproduction.
What is the maximum output power of the P-9?
The P-9 delivers a maximum output power of 7V RMS, sufficient to drive most amplifiers effectively.

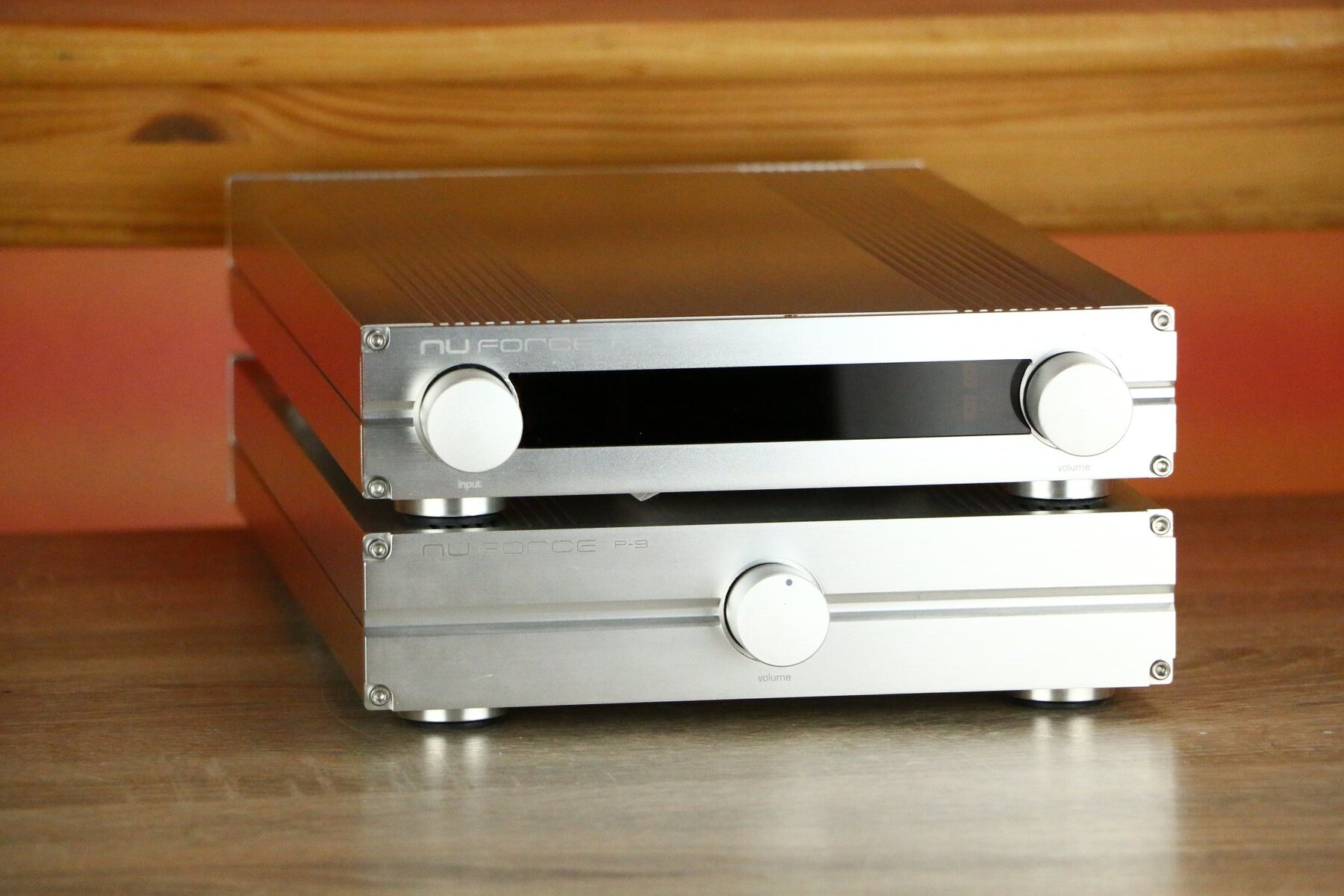

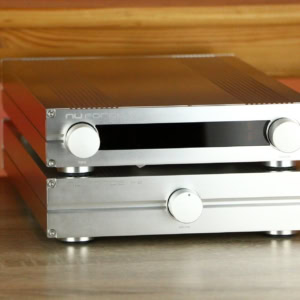

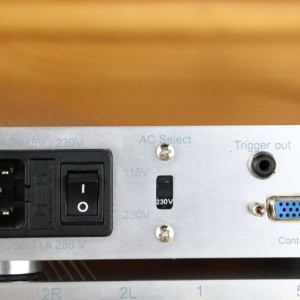

How is the NuForce P-9 powered?

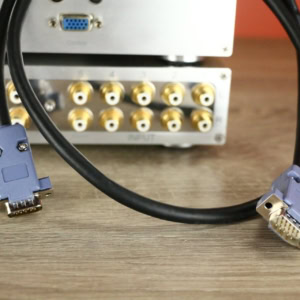

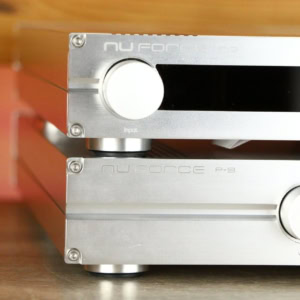

The P-9 consists of two chassis: one for the power supply and digital controls, and one for the analog circuits, ensuring minimal interference and a clean signal path.
