What devices can be connected to the sPS-1000?
The sPS-1000 can be connected to various audio devices, such as digital media players, DACs and USB audio interfaces, thanks to its three different output levels with adjustable voltages.
How are the output voltages set?

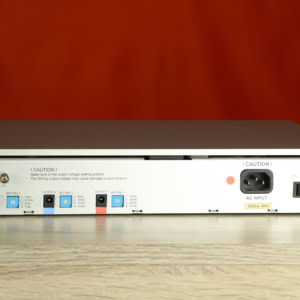

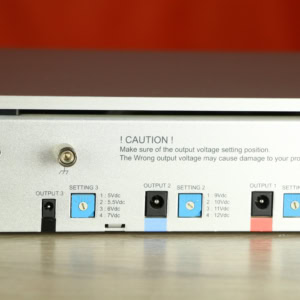

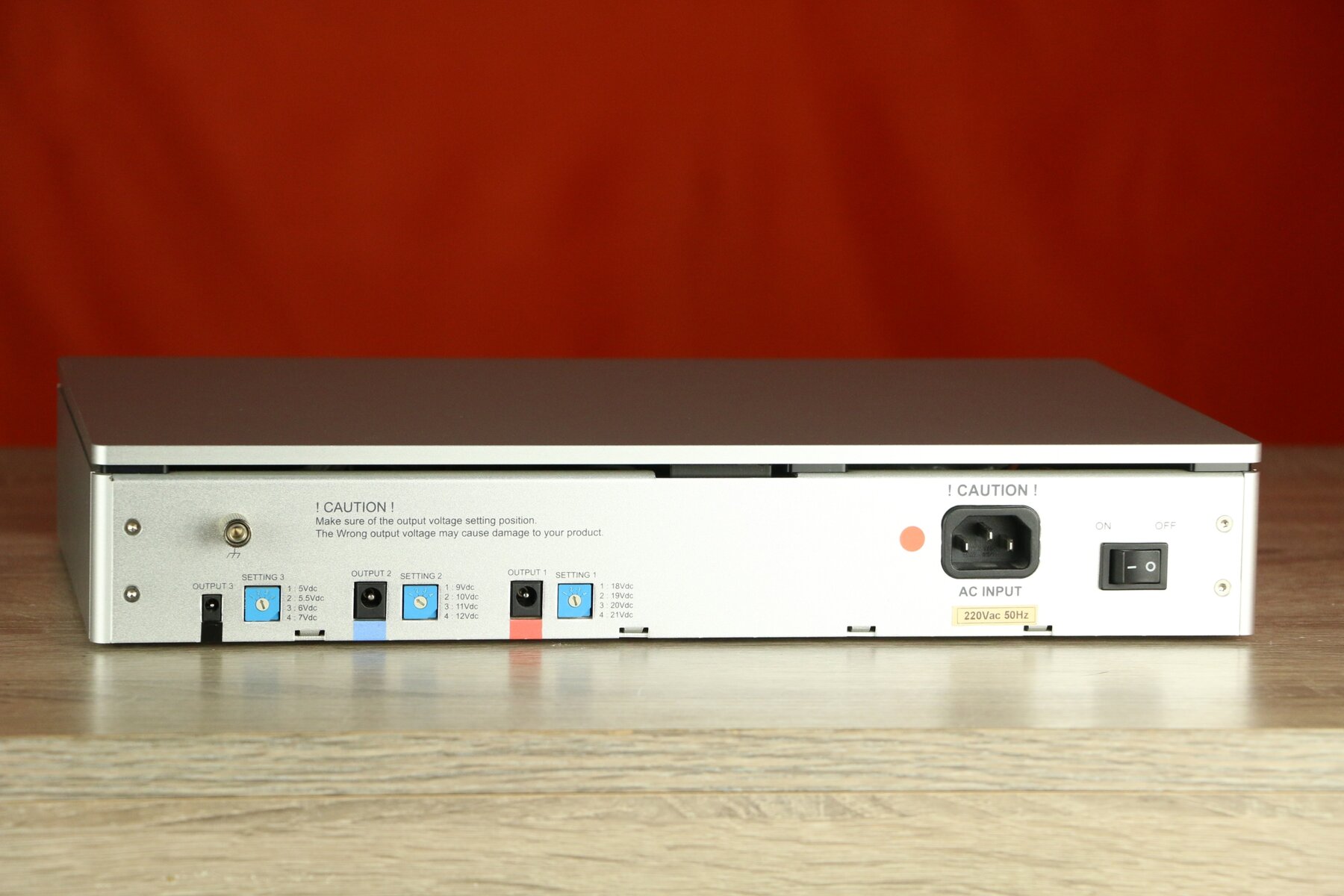

Output voltages are set using switches on the rear panel, with each output having four selectable voltage levels.
Can all three outputs be used simultaneously?
Yes, all three outputs can be used simultaneously to power multiple devices.
What protection mechanisms are built into the sPS-1000?
The sPS-1000 is equipped with short-circuit protection and overtemperature protection to ensure safe operation.
What are the dimensions of the sPS-1000?
The dimensions of the sPS-1000 are 360 mm x 68 mm x 245 mm.

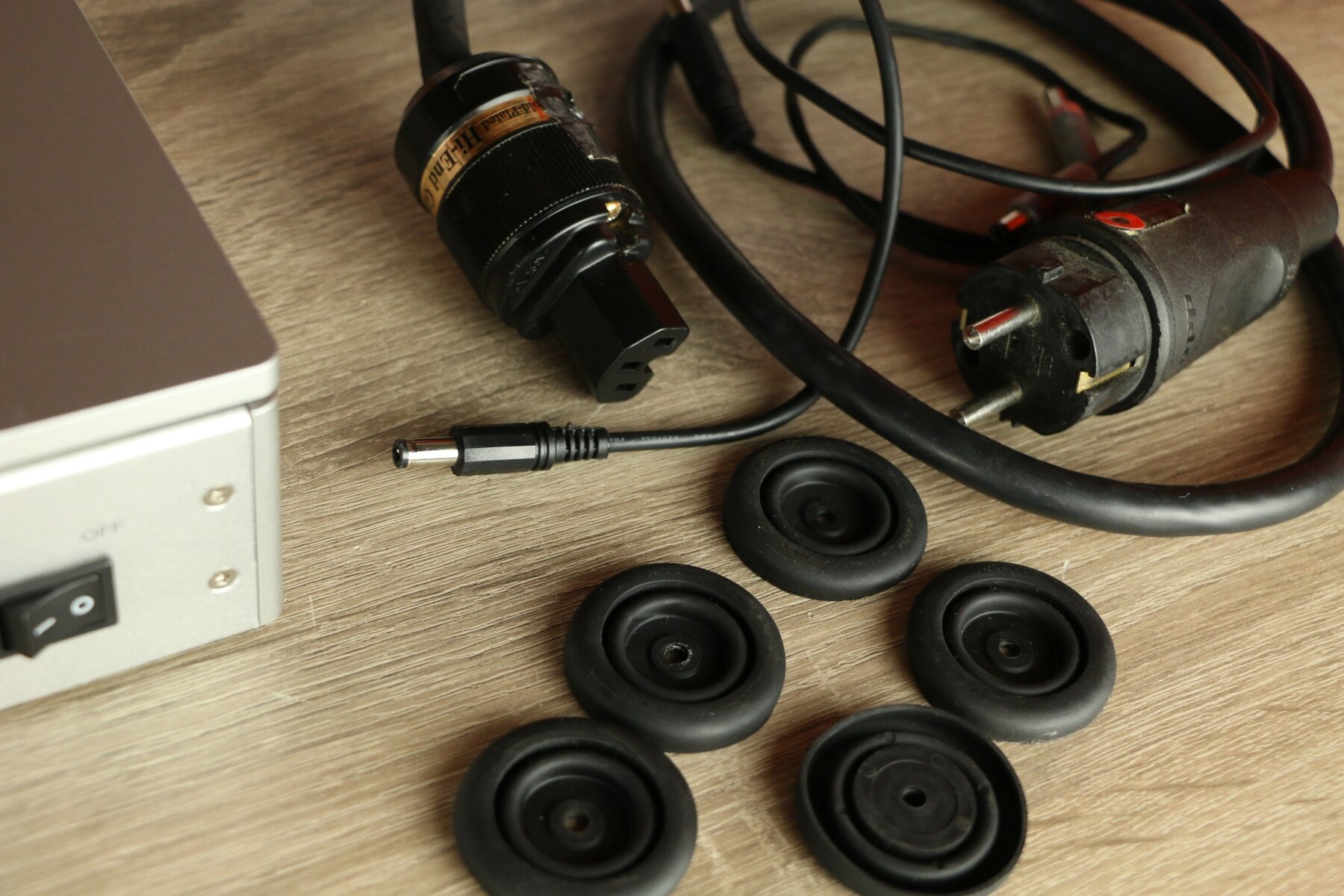

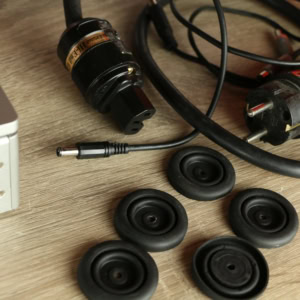

Is it possible to purchase additional DC power cables?
Yes, additional DC power cables are available in different lengths and materials, such as copper or silver, to meet specific needs.
What voltage ranges are available on the outputs?
The high output offers 18V, 19V, 20V and 21V; the middle output offers 9V, 10V, 11V and 12V; and the low output offers 5V, 5.5V, 6V and 7V.

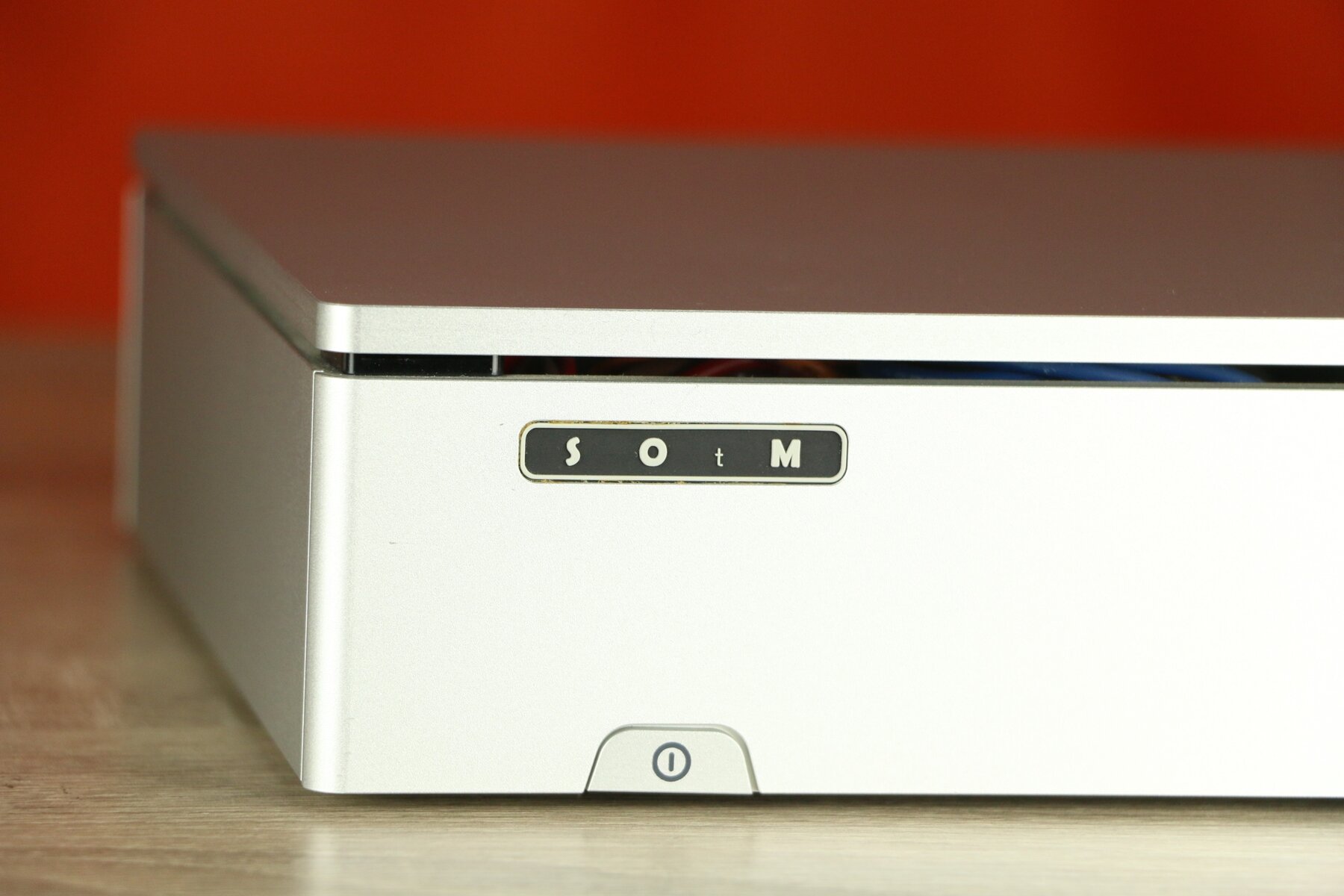

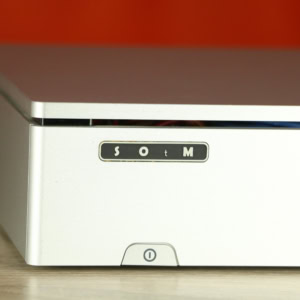

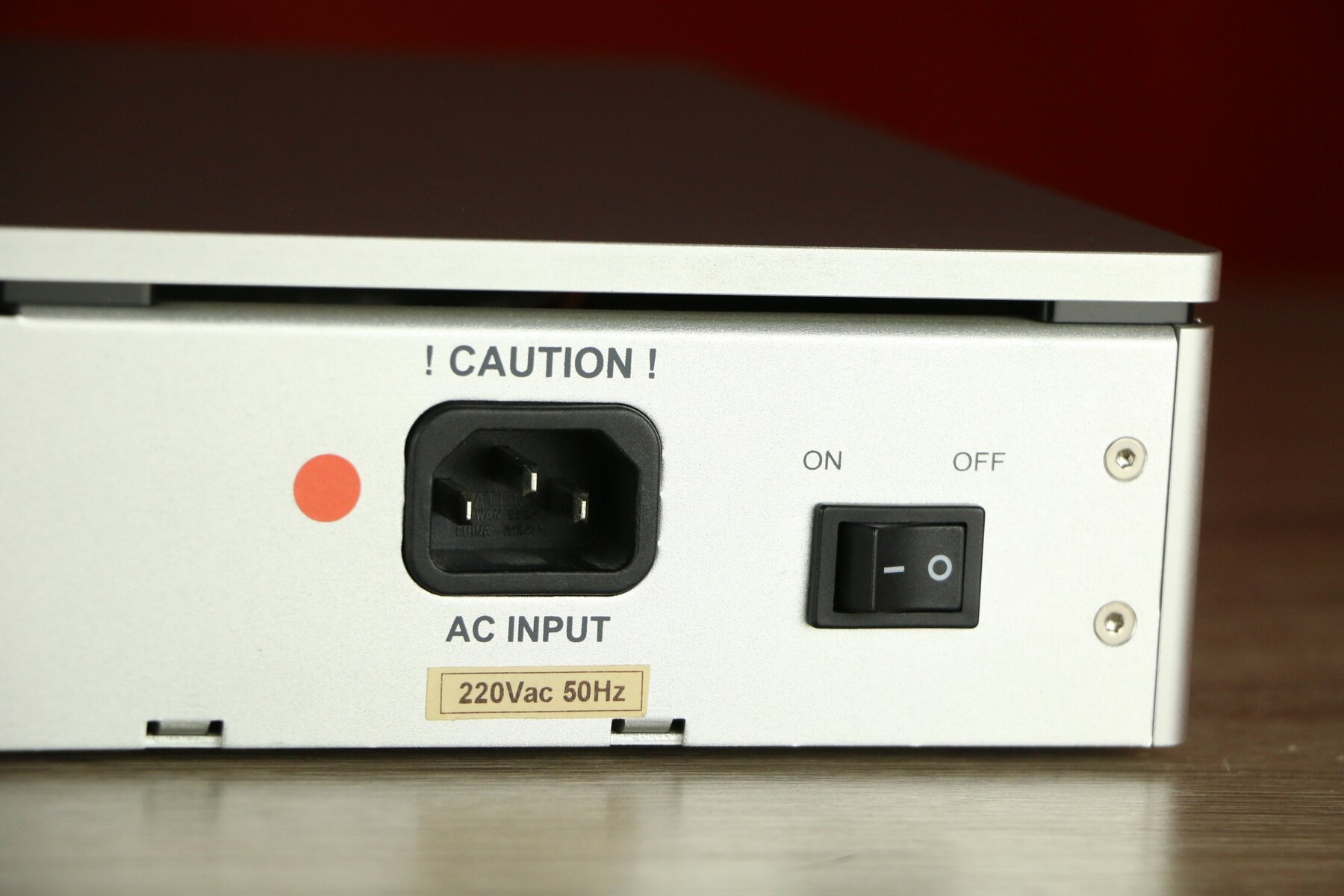

How is the sPS-1000 turned on?

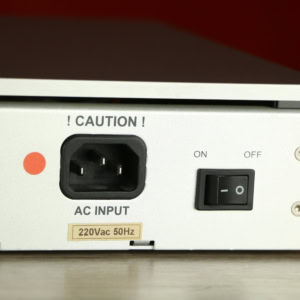

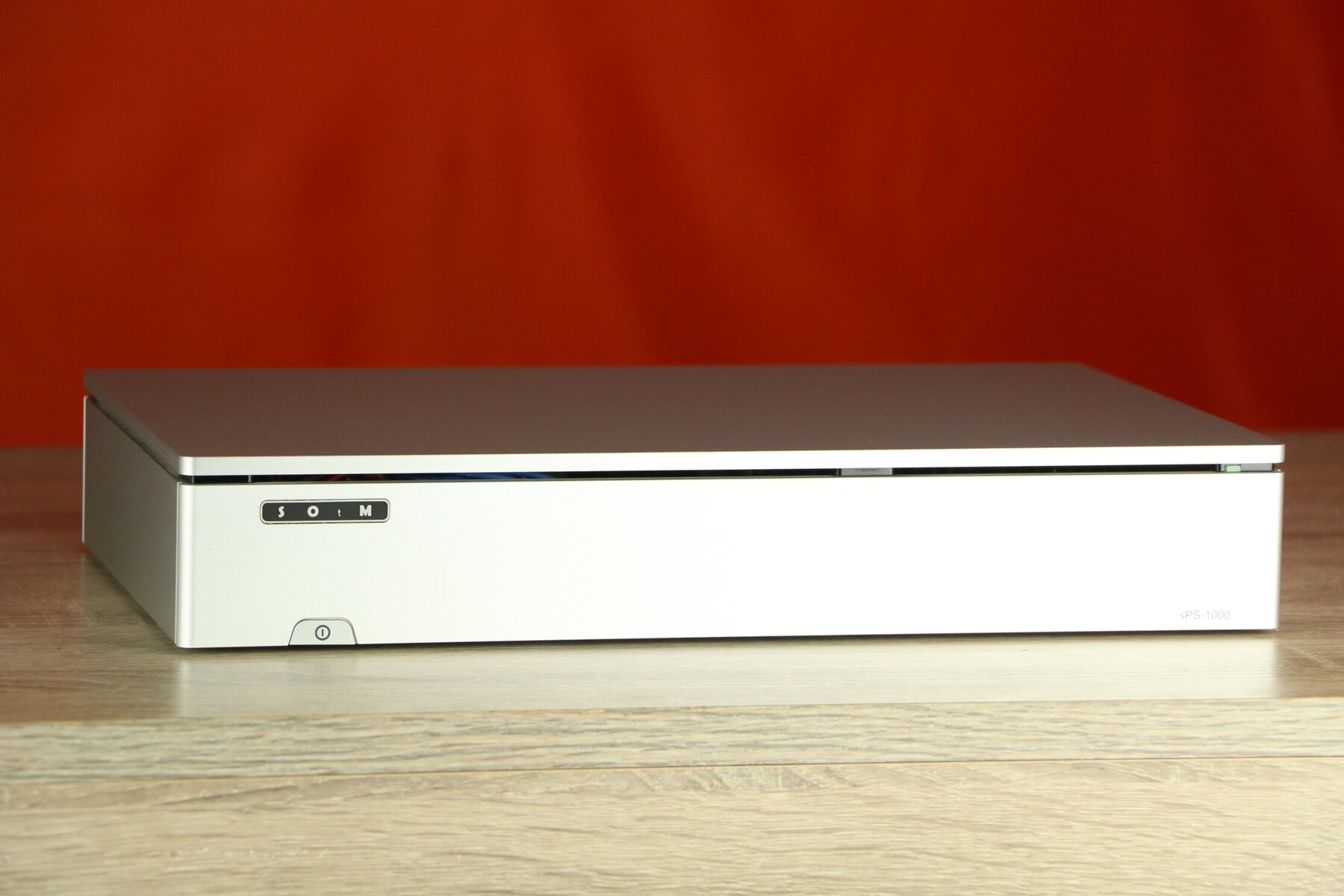

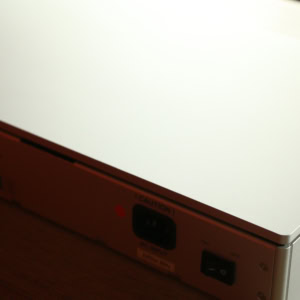

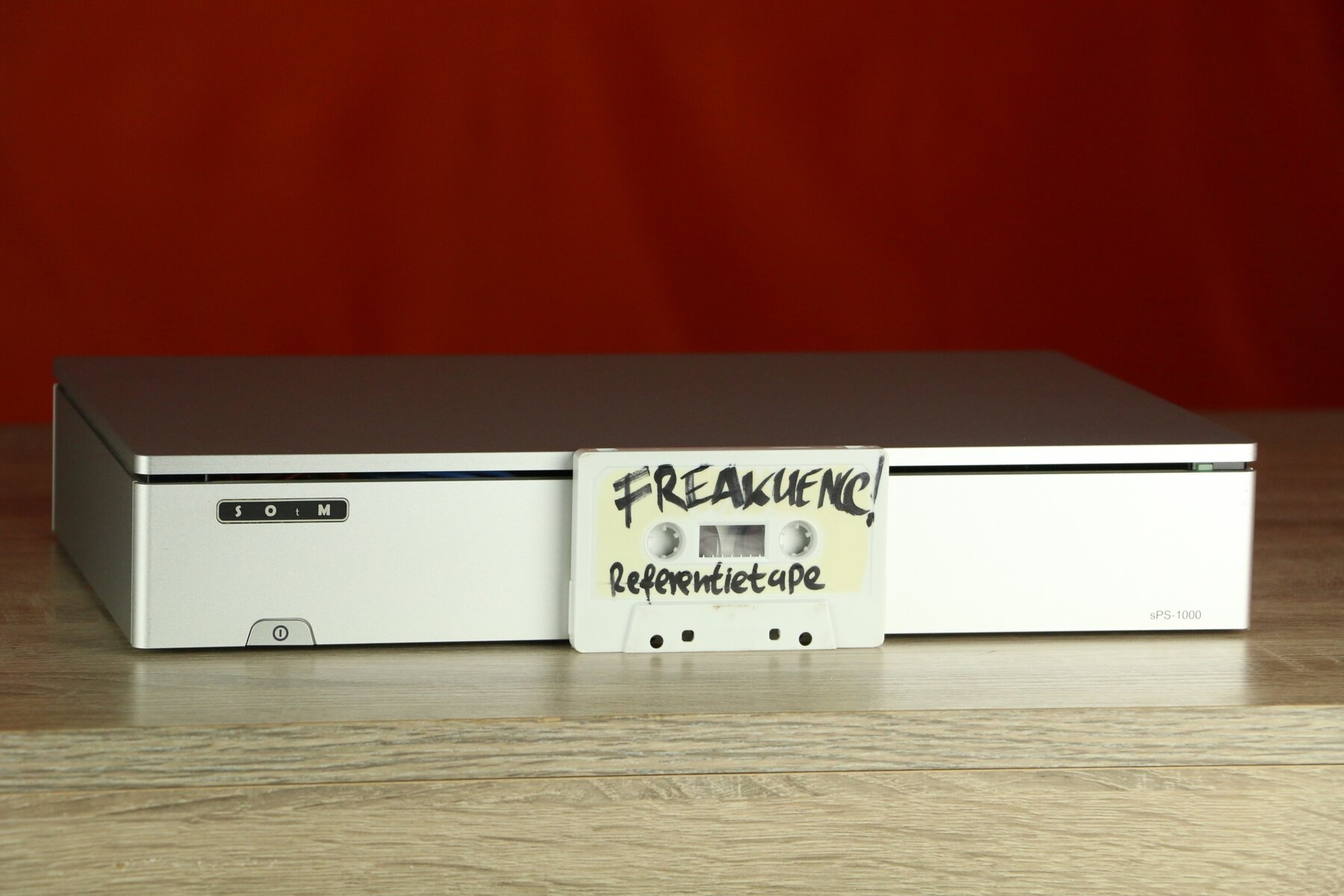

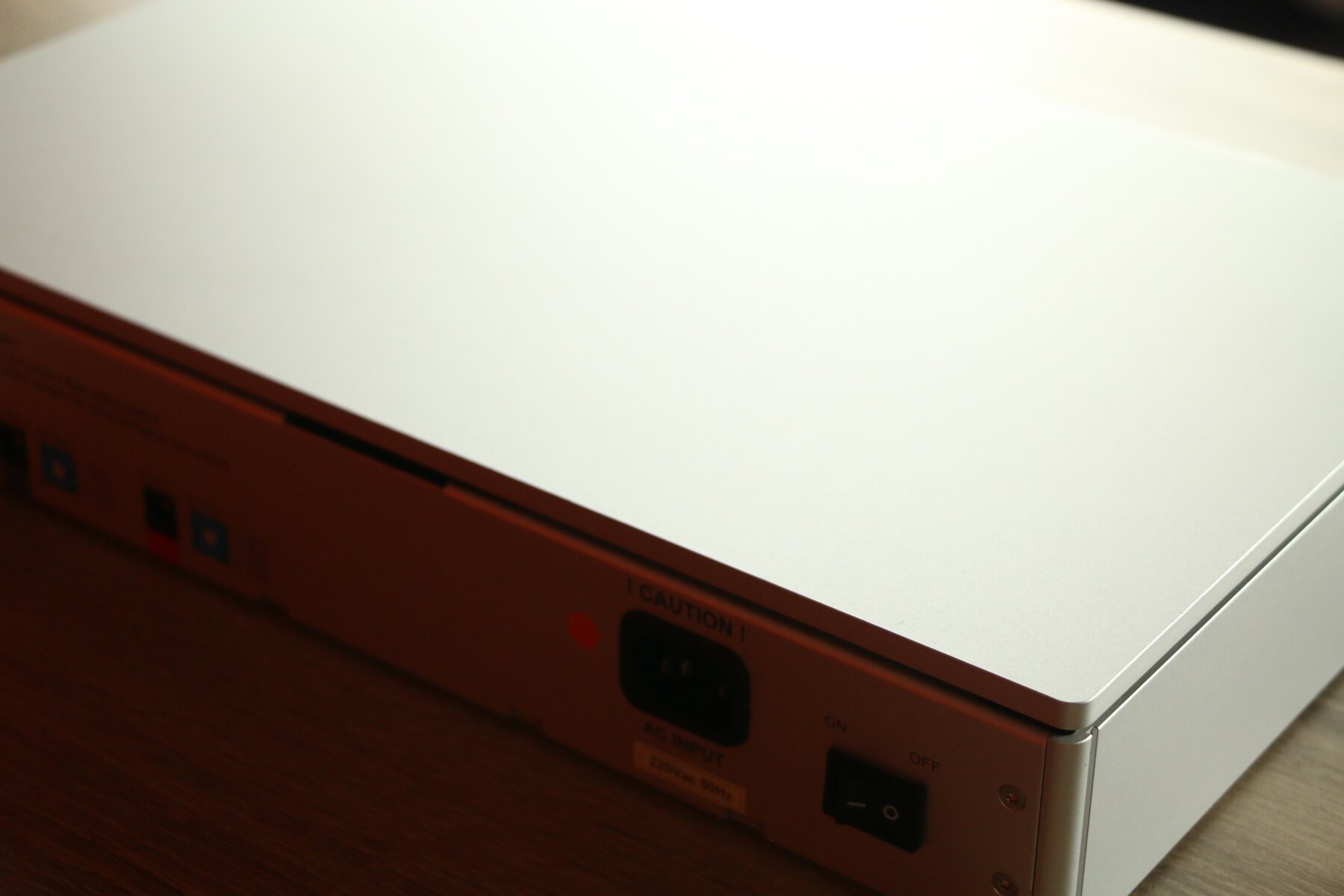

The sPS-1000 has an AC power switch on the rear panel and a DC output switch on the front panel for easy operation.
